Danfoss Dynamic Valve™ is an innovative radiator valve with a 2-in-1 valve design. It combines a thermostatic radiator valve and a differential pressure controller for accurate temperature control and automatic hydronic balancing in a single product.
The built-in differential pressure controller eliminates pressure fluctuations in a two-pipe heating system. By using Dynamic Valve™ a perfectly controlled and automatic hydronic balanced heating system is simply established.
Dynamic Valve™ is good news for everybody involved in designing or specifying of two-pipe heating systems. It has all the advantages of automatic hydronic balancing combined with optimal temperature control.
By installing the valves you also install automatic balancing at the same time. To commission the system correctly the valves just have to be set to correct maximum flow at each radiator.
Dynamic Valve™ is a product typical to use in residential buildings. Many owners, occupants and other users will recognize typical heating problems like noise, uneven heating and high energy bills. The indoor comfort will be greatly increased when Dynamic Valve™ is used.
A 2-in-1 valve design for temperature control and automatic balancing
Built-in differential pressure controller
Maximum differential pressure 60 kPa
Limitation of maximum flow between 10 – 135 liters per hour
Available in DN 10/15/20
Available in Straight, Angle, Angle UK, Angle left and Angle right models
Available in NF (Norm France) and DIN (Deutsche Industrial Norms) standards
Presentation of what is special about this thermostatic radiator valve, how it works and what the benefits are.
Play video

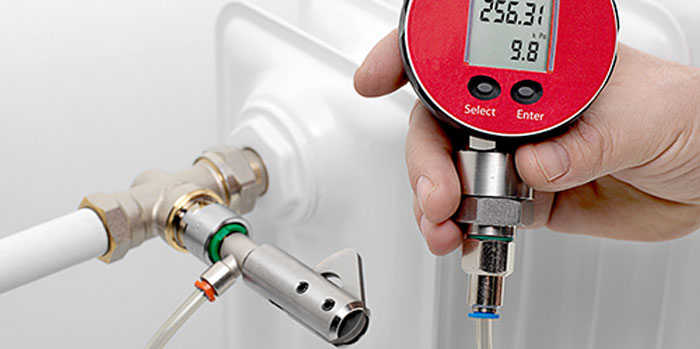

There is only one requirement to ensure the built-in differential pressure controller works as it should. That is the total differential pressure over the Dynamic Valve™ is 10 kPa. If this pressure loss is present on the valve furthest from the pump, the system is correctly commissioned. To check if the required pressure loss is present use the dP tool™. It's a simple and unique tool that measures the available differential pressure.
No, Dynamic Valve™ can only be used in two-pipe heating systems
The maximum differential pressure is 0,6 bar or 60 kPa
All sensors with a RA-connection (RAW, RAE, RAX, RAS-C, RAS-C2, RA 2000, living by Danfoss) can be used. However the Dynamic Valve™ should only be mounted in the inlet, so FJVR sensors should not be mounted.
No, if there is a few radiators where Dynamic Valve™ can be mounted (e.g. due to a radiator with build-in valve) you can still achieve proper system balance. However it needs to be a little throughout a system.
Yes, this can be done by using the Danfoss dP tool™. With it you can measure whether the differential pressure of 0,1 bar or 10 kPa is achieved. The actual flow can be derived by looking up the actual pre-set value in the data sheet or on the Danfoss Pre-setting tool.
The valve works in a way that the pre-set flow will be kept regardless of pressure changes in the heating system.
No, as the valve will keep a constant pressure over the valve cone, noise will not be an issue as long as the maximum differential pressure in the system is below 0,6 bar or 60 kPa
Dynamic Valve™ can be used with all common used heating sources:
