Our bearing temperature sensors are fitted with an adjustable spring-loaded protection tube that always ensures metallic contact between the bearing and the sensor. This makes them ideal for monitoring bearing temperatures in applications where there’s a risk of overheating, such as:
- Engine bearings
- Gearbox bearings
- Power transmission bearings
Features and benefits
-
All designs are based on Pt 100 / Pt 1000 / NTC technology
-
Sensor tube and pocket material: AISI 316 Ti
-
Temperature range -50 – 200 °C
-
Quick response time is achieved by placing the sensor element at the very tip of the sensor tube
-
All sensor tube and pocket material is made of AISI 316 Ti

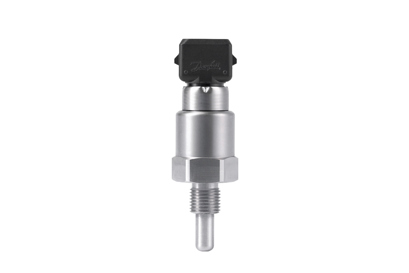

The MBT 2310 bearing sensor is specifically designed for measuring the temperature in the bearings in mobile hydraulic machines.
MBT 2310 features:
- Available with a wide range of electrical connectors
- Sensor tube Ø 6 x 1 mm
- Sensor tube displacement max. 8 mm
- Reaction time of down to τ0.5 = 6 sec. in water.

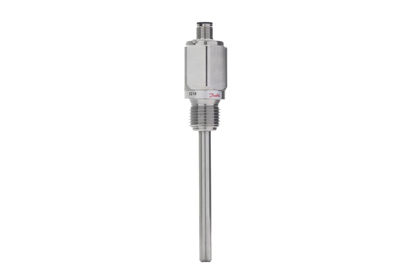

The MBT 3310 bearing sensor is specifically designed for measuring the temperature in the bearings on wind turbines.
MBT 3310 features:
- Electric connection M12 x 1(2- or 4-wire connection)
- Sensor tube Ø 8 x 1 mm
- Sensor tube displacement max. 15 mm
- Quick installation with easy top mounting
- Reaction time of down to τ0.5 = 6 sec. in water.

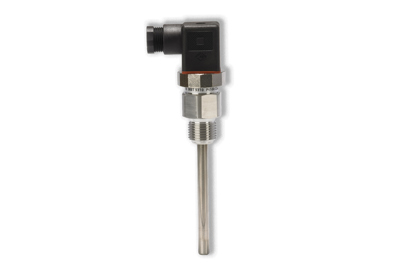

The MBT 5310 bearing sensor is specifically designed for measuring the temperature in the bearings in the Marine engine room and wind turbines.
MBT 5310 features:
- Available with a wide range of electrical connectors
- Sensor tube Ø 8 x 1 mm
- Sensor tube displacement max. 15 mm
- Reaction time of down to τ0.5 = 4 sec in water.
- Relevant marine approvals
