Get even more drive in your HVAC – with rock-bottom lifecycle costs in any climate
More than ever, the extreme climates, inaccessible machine rooms and isolated outposts of our planet need the best process control there is for their HVAC installations. Your everyday critical functions and costly systems need it too, as they face ever-increasing competition and efficiency demands. Always with high performance in mind, the enhanced VLT® HVAC Drive gives you more room to maneuver. It confronts the issues and gives you rock-solid reliability. With rock-bottom lifecycle costs too.

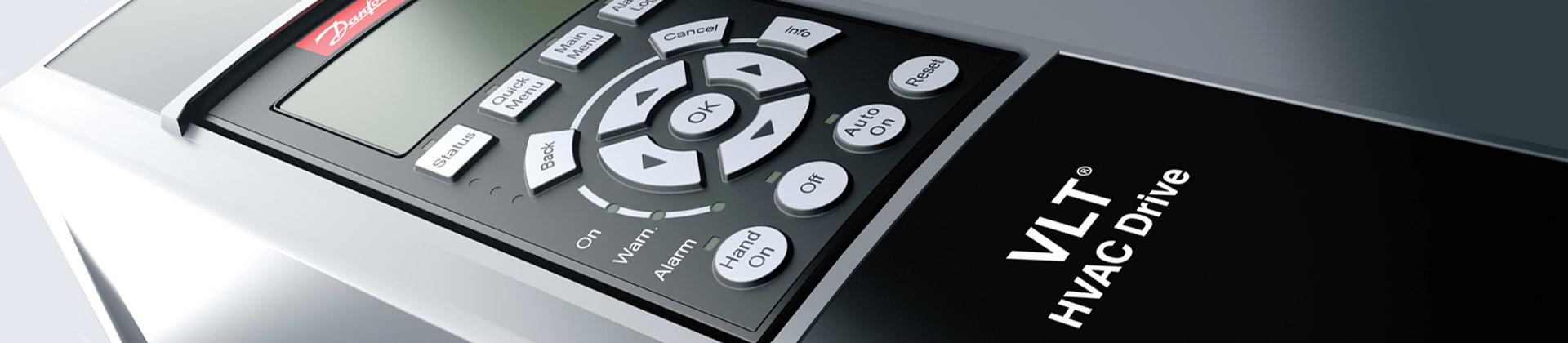

The AHRI Certified™ VLT® HVAC Drive is designed to bring optimized process control to all heating, ventilation and air conditioning (HVAC) applications. Easy to use and with built-in intelligence, the drive is fast and cost-effective to commission. It features a wide range of functions specifically developed for use with pumps, fans, and compressors to save energy, meet environmental regulations and reduce costs in modern buildings.
The compact design of the VLT® HVAC Drive and its efficient heat management system mean it is ideal for applications where drive space is restricted. A selection of safety features, such as Safe Torque Off and Safe Maximum Speed, protect both applications and their operators.
Maximum uptime is ensured as this robust drive offers problem-free operation in harsh environments. Enclosures are available up to IP 66 (depending on the model). And a special coating is available as an option to provide extra protection for circuit boards. Integrated DC chokes and RFI filters safeguard installations by minimizing harmonic distortion and electromagnetic interference.
Supply voltages and power range
- 3 x 200-240 V...1.1-45 kW
- 3 x 380-480 V...1.1-1000 kW
- 3 x 525-600 V...1.1-90 kW
- 3 x 525-690 V...1.1-1400 kW
Low harmonic drive
- 3 x 380-480 V...160-710 kW
12-pulse drive
- 3 x 380-500 V...315-1000 kW
- 3 x 525-690 V...450-1400 kW
Features and benefits
-
There’s no need for external cooling or oversizing as the maximum ambient temperature is 50°C without derating
-
PLC capacity is often unnecessary thanks to the Smart Logic Controller
-
A low initial investment and easy upgrades are possible thanks to the modular concept with a wide range of options
-
The need for external control and conversion equipment is avoided due to integrated pump, fan and compressor functionality
-
5–15% energy is saved as a result of the Automatic Energy Optimization function
-
Less gateway solutions are needed thanks to a wide range of HVAC protocols for building management system controller connectivity
Avoid unplanned downtime with condition based monitoring
Unplanned downtime of HVAC systems can be catastrophic for essential infrastructure and those who depend on it today. Danfoss technologies empower frontline operators - both on site and remote - to predict unforeseen early failures thereby better planning for maintenance and maximizing uptime. Explore how intelligent VLT® drives solve potentially critical problems in HVAC applications.
New application paper: VLT HVAC Drive FC 102 with Fire Emergency Mode
The FC 102 is not only the most efficient of HVAC drives. It also saves lives and protects inventory, by ensuring the most effective smoke control in the event of a fire. With this new application paper, we aim to win more projects by informing customers of special FC 102 features which ensure exceptional performance, when safety is a critical factor.
Safeguard your investment
Register your drive and see if you qualify for a 12 month warranty extension.
Offer only available in the United States and Canada.
Register Your Drive
