Part of the ICV Flexline™ valve family, ICS pilot-operated servo valves comprise three main components: valve body, function module, and top cover. Designed for low- and high-pressure refrigerants, ICS valves can be used to regulate pressure, temperature, and on/off functions in refrigeration systems. Incredibly versatile, ICS valves can be used on the high and low pressure sides, in wet and dry suction lines, and in liquid lines without phase change.
Thanks to their low weight and compact design, ICS valves are quick and easy to handle, install, and service. Designed and tested to withstand a maximum working pressure of 65 bar (943 psi) in a media temperature range of −76°F to 248°F, ICS valves are suitable for CO2, ammonia, and other high-pressure refrigerants.
The ICS's special regulating cone V-port design allows the temperature set-point to be adjusted to a higher level, and a better COP, leading to energy savings.
ICS's modular design enables a high degree of flexibility to create a valve that meets system requirements. The common valve body for ICS is available in several different connection sizes. Different function modules in the ICS series offer a wide range of capacities and functions which can be installed in each valve body. The valves have direct weld connections allowing for high pressure and a tighter design compared to traditional flanged valves.
Fast and easy handling, installation and service
Low weight and compact design
Suitable for HCFC, HFC, ammonia and CO2
Optimized pressure control improves efficiency
Connection types include butt weld, socket weld, solder and flare
The ICS Flexline™ servo operated valves are not only designed to give you savings and design freedom, but they also provide a reliable, safe and green solution for your needs - both now and in the future.
Download the brochure
Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s requirements or based on standard operating conditions.
Coolselector®2
Want to know more about industrial refrigeration with ammonia? The IR application tool is an interactive PowerPoint slideshow that takes you through all details of a two-stage ammonia plant. By clicking on a specific area of the plant, you will be provided with detailed cut-away drawings and information on the specific valves required. You will also find useful links to technical literature, product animations and videos.
Danfoss ICV Flexline™ guarantees you a reliable, safe and green solution - both now and in the future. The product family consists of an ICS pilot operated control, ICM motor operated control and ICLX 2-step solenoid valve.
Hot gas defrost is a very common and efficient method used within industrial refrigeration. Sound design practices and specific design features should always be considered carefully to prevent safety risks, which may be caused by even a slight change in operating conditions.
Featuring full backwards compatibility, Danfoss' complete line of pilot valves for ICS Flexline™ reduces the number of variants from eight to four, covers all regulation, types, and ranges, and are compatible with HCFCs, non-flammable HFCs, ammonia, and CO2

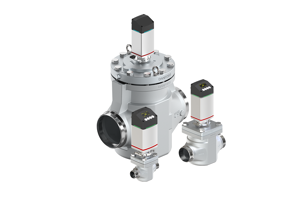

ICM motor-operated valves, part of Danfoss' ICV Flexline™, regulate the expansion process in liquid lines and control pressure or temperature in wet and dry suction lines and hot gas lines. Compact and lightweight, ICM valves are easy to handle, install, and service.
