Vertical Bypass Panel Assemblies

Get a quote

Same VLT® power — smaller footprint

The Vertical Panel design gives the installer and drive user a centralized drive system featuring main supply disconnect convenience to help ensure operator safety and system protection. Engineered panels are available in a variety of configurations with user-specified options to best match individual application requirements.

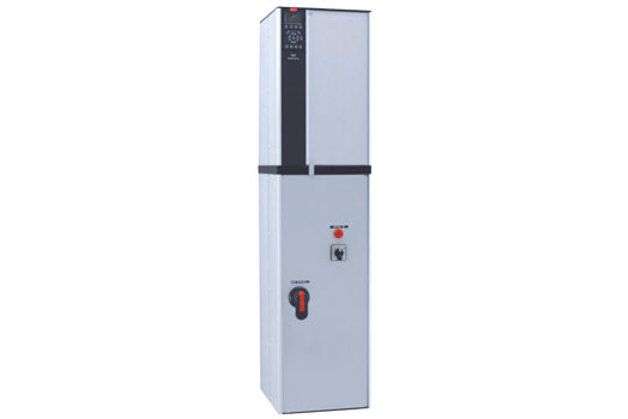

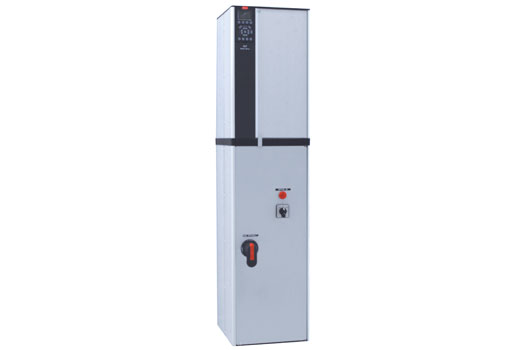

Vertical bypass panel

Panels are available for:

  • VLT® AQUA Drives
  • VLT® AutomationDrives
  • VLT® HVAC Drives
  • MCD Series Soft Starters
Need support? Try MyDrive® Assistant now!

Options:

  • 208V-240V thru 60 HP, 460V and 600V thru 125HP
  • Fused Disconnect or Circuit Breaker Disconnect
  • Electronic or Electromechanical Bypass
    100KA SCCR
  • Embedded fieldbus communication protocols
  • Various fieldbus and I/O option cards

Features and benefits

  • Structured around our FC102 VLT® HVAC Drive

  • Same performance as our traditional panel with smaller footprint

  • Sleek vertical layout that requires less horizontal wall space

  • Same high quality components and design as our traditional panel

  • UL/CUL 508 listed and seismically certified

  • UL Type 1 / Nema 1 design

  • Non-bypass or 3 contactor bypass

  • Inherent phase loss/imbalance and brown-out protection to prevent product damage and downtime in adverse power quality installations

  • 24VDC control power for all but the largest sizes
