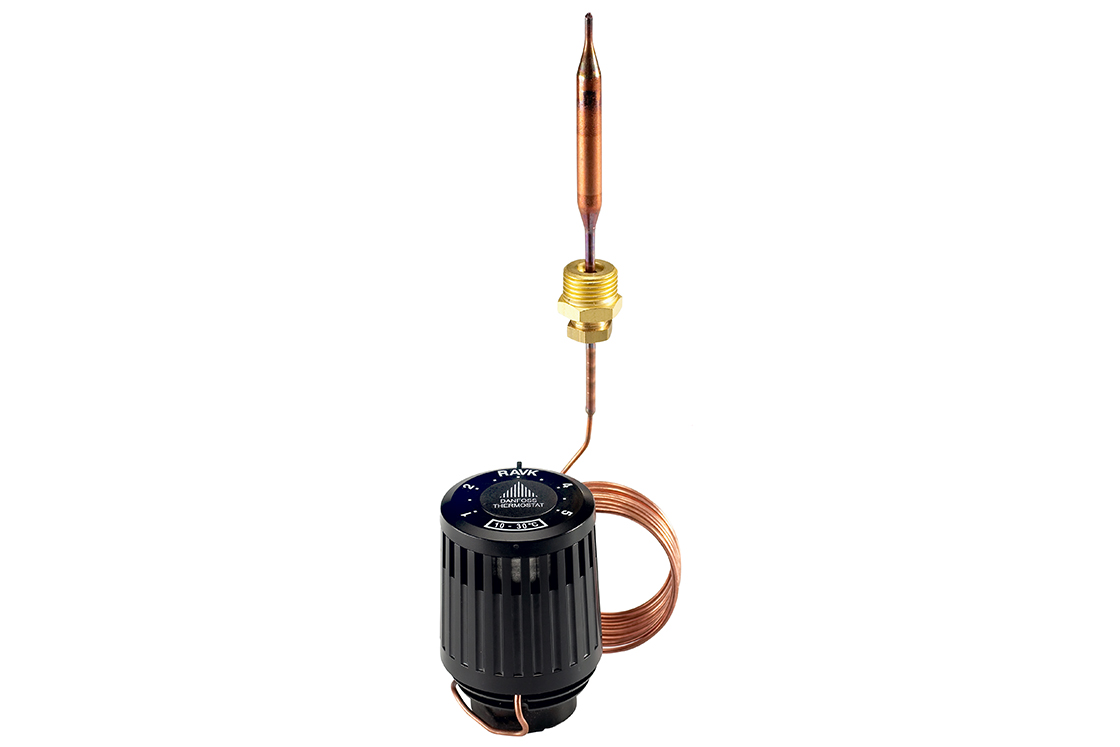

RAVK self acting thermostatic operator

RAVK

RAVK is a self-acting thermostatic operator used to control temperatures in small hot-water cylinders (i.e. storage tanks) or heat exchangers in hydronic hot water systems. RAVK closes on rising sensor temperature.

Features and benefits

Closes on rising sensor temperature
Three temperature ranges
Mounts on either supply or return side of system
Sensor element can be fitted in any orientation
Dial can be set to limit or lock the setting range

Products

Technical data

Type: Thermostatic

Required Valve Body: VMT or KOVM

Capillary Length: 6 ft. 6 in. (2 m)

Code No.	Temperature Range
003L3530	50° - 86°F (10° - 30°C)
013U8063	77° - 149°F (25° - 65°C)
003L3531	95° - 167°F(35° - 75°C)

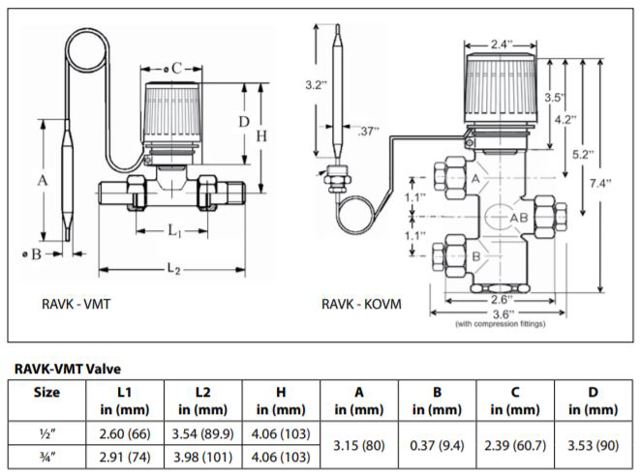

Dimensions

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Data sheet	RAVK	English	Multiple	31 Jan, 2006	842.1 KB	.pdf
Data sheet	RAVK	English	Multiple	23 Nov, 2006	1.3 MB	.pdf
Data sheet	RAVK	Czech	Multiple	02 Mar, 2015	1.0 MB	.pdf
Data sheet	RAVK	Danish	Multiple	13 Feb, 2008	1.0 MB	.pdf
Data sheet	RAVK	Spanish, Castilian	Multiple	09 Jan, 2015	992.6 KB	.pdf
Data sheet	RAVK	English	Multiple	27 Nov, 2014	1.1 MB	.pdf
Data sheet	RAVK	Polish	Multiple	22 Jan, 2015	1.0 MB	.pdf
Data sheet	RAVK	Hungarian	Multiple	09 Jan, 2015	990.8 KB	.pdf
Data sheet	RAVK	German	Multiple	20 Dec, 2006	765.6 KB	.pdf
Data sheet	RAVK	English	Multiple	28 Sep, 2015	1.0 MB	.pdf
Data sheet	RAVK	Danish	Multiple	22 Jan, 2015	1.0 MB	.pdf
Data sheet	RAVK	German	Multiple	19 Mar, 2015	1.1 MB	.pdf
Data sheet	RAVK	Swedish	Multiple	19 Mar, 2017	1.2 MB	.pdf
Data sheet	RAVK	Danish	Multiple	19 Mar, 2017	1.2 MB	.pdf
Data sheet	RAVK	Czech	Multiple	19 Mar, 2017	1.1 MB	.pdf
Data sheet	RAVK	Czech	Multiple	08 Mar, 2009	1.1 MB	.pdf
Data sheet	RAVK	Swedish	Multiple	18 Jan, 2015	1.0 MB	.pdf
Data sheet	RAVK	Polish	Multiple	19 Mar, 2017	1.2 MB	.pdf
Data sheet	RAVK	German	Multiple	14 Sep, 2017	1.2 MB	.pdf
Data sheet	RAVK	Hungarian	Multiple	19 Mar, 2017	1.2 MB	.pdf
Data sheet	RAVK	English	Multiple	05 Jun, 2007	763.6 KB	.pdf
Data sheet	RAVK	Spanish, Castilian	Multiple	19 Mar, 2017	1.1 MB	.pdf
Data sheet	RAVK	Spanish, Castilian	Multiple	19 Feb, 2007	1.2 MB	.pdf
Data sheet	RAVK	Polish	Multiple	23 Nov, 2008	1.2 MB	.pdf
Data sheet	RAVK	German	Multiple	17 Dec, 2019	1.3 MB	.pdf
Data sheet	RAVK	Hungarian	Multiple	26 Dec, 2006	1.3 MB	.pdf

Related products

KOVM mixing valve

KOVM mixing valve bodies are designed to maintain room temperature by controlling hot (or chilled) water flow through radiators, fans, convectors, etc. Due to the KOVM’s unique bypass design, a constant system flow is achieved regardless of the room’s heating (or cooling) requirements. Therefore system pressures and flow rates are automatically kept constant without the need for pressure controlled bypass valves.

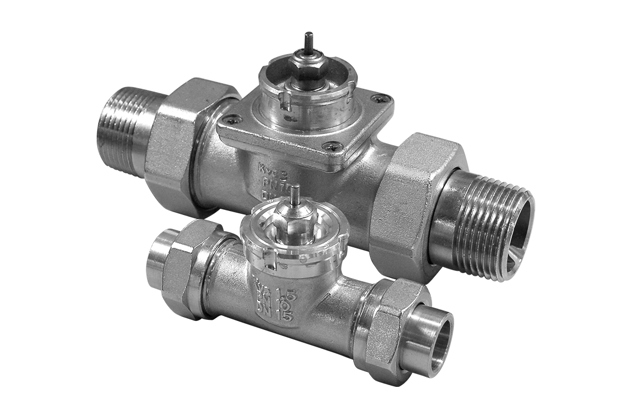

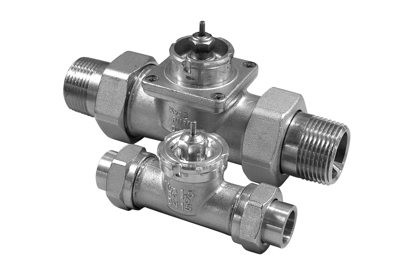

VMT valves for thermostatic or electric actuators

The VMT valve is a 2-way seated valve, used primarily for heating systems. The valve can be combined with the following thermostatic elements from Danfoss: RAVK, ABV, TWA-V or RA2000 wall mount operators.

AVTB and AVTB-RA temperature controllers

AVTB direct acting and AVTB-RA reverse acting proportional controllers are used to regulate the temperature of water.
