LX Mats for electric floor heating

Product store
LX Mat

Easy to install,
clean comfortable heating,
with LX Mats



Danfoss LX floor warming mats radiate heat from the floor for even, clean and gentle heating of a room.

Ideal for bathrooms, kitchens, entryways, and utility rooms LX mats provide warmth without blowing dust and debris around like a conventional heating system. Suitable for both residential and commercial electric heating applications.

Features and benefits

  • Genuine 20-year warranty

  • Easy to install - ready to lay on the floor

  • Dual-adhesive backing requires no fastening saving up to 70% in installation time

  • Minimal thickness-only add 3/16" height to the floor

  • Single point connection

  • Eliminates electromagnetic fields (EMFs)

  • Safety approved for wet locations

  • Pre-applied heating cable means even heat every time

Easy & Flexible Installation

Discover installation tips/tricks and see just how easy it is to install the Danfoss LX floor warming system.

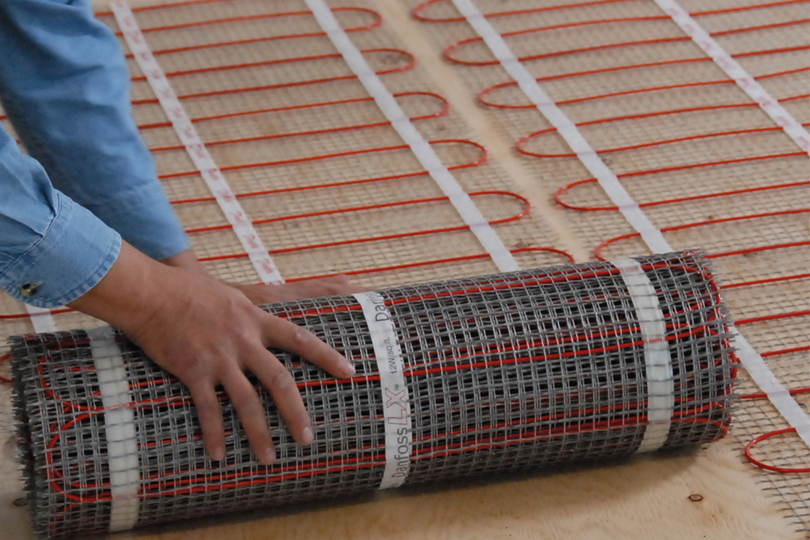

LX Mat Easy Installation

Technical Data:

  • Mat Construction: Thermoplastic polymer coated fiberglass, self-adhesive backing
  • Cable Construction: Twin Conductor
  • Cable Diameter: 3/16" (4.8mm)
  • Rated Voltage: 120V, 240V
  • Max. Rated Temperature: 212°F (100°C)
  • Conductor Insulation: Teflon™ FEP
  • Outer Insulation: PVC

Solutions for:

  • Renovations: Renovating this season? Why not upgrade and install the Danfoss LX mat & thermostat to experience year-round comfort with a hassle-free low maintenance system.
  • Bathrooms: Enjoy warm floors in your bathroom and showers. Enhance comfort & safety and increase the resale value of your home.
  • Bedrooms: Danfoss LX mats and cables are suitable for stone, tile, & engineered wood floor coverings. Enjoy clean heat and turn down your thermostat maximizing energy savings!


Applications

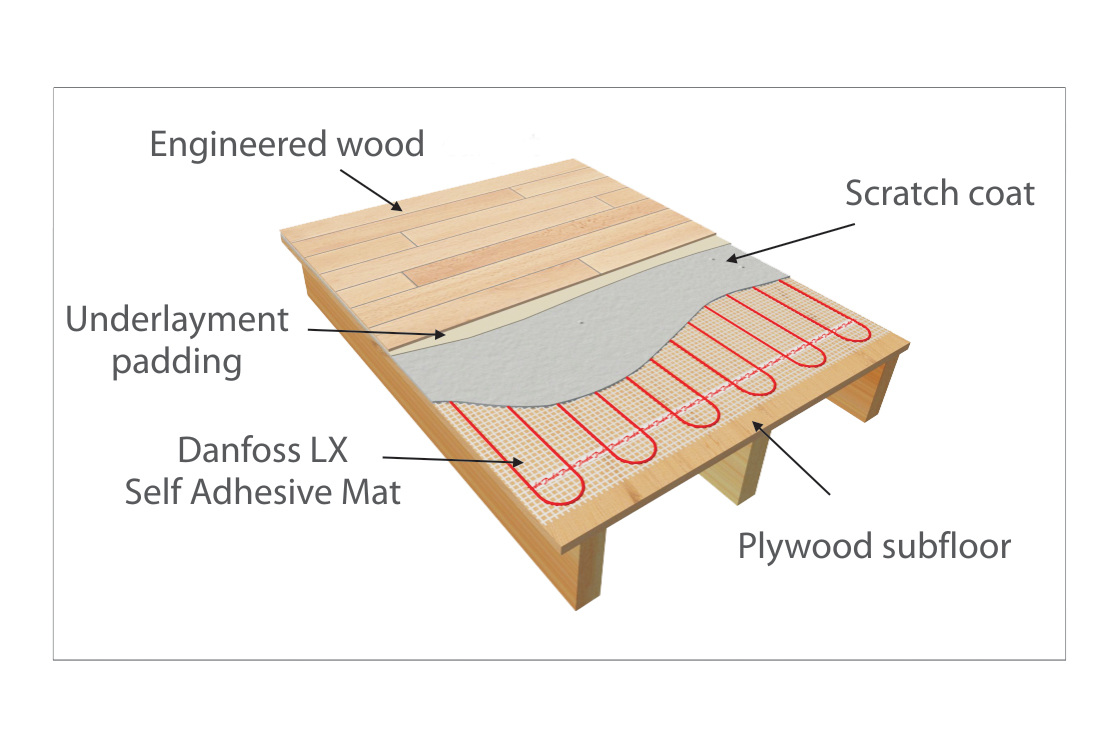

typical lx mat application - engineered wood
Engineered wood or laminate

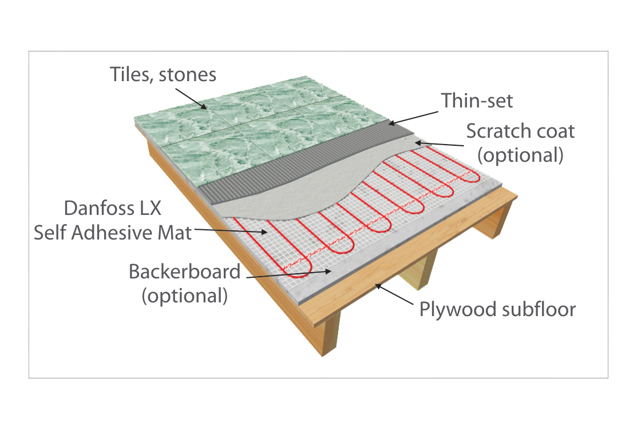

typical lx mat application - plywood subfloor
Plywood subfloor
Mat is installed on plywood subfloor with optional backerboard, and scratch coat. Then finished with a layer of thin-set and floor covering of tiles or stones.

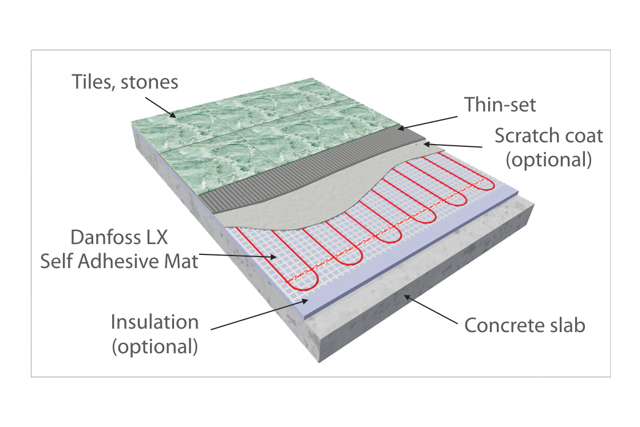

typical lx applications - concrete subfloor
Concrete subfloor
Mat is installed on a concrete slab with optional insulation, and scratch coat layer.  Complete with a layer of thin-set and finished surface of tiles or stone.

Documents

Documents
Type Name Language Valid for Updated Download File type
Catalog Electric Heating Product Catalog English United States 19 Mar, 2025 5.6 MB .pdf
Data sheet LX Mat Datasheet English Multiple 29 Jan, 2019 250.8 KB .pdf
Brochure LX Mat Floor Warming Brochure English Multiple 22 Jan, 2025 1.5 MB .pdf
