NovoCon® digital actuators are tailor made to fit Danfoss AB-QM™ Pressure Independent Balancing Control Valves. They establish the perfect connection between superior hydronic HVAC system performance and smart building automation solutions.
Traditional controlled actuators, at best, offer an analog feedback signal to the BMS room controller. Instead, the NovoCon® actuators offers many digital system parameters directly to the Building Management System via BACnet or Modbus. It for example exchanges accurate information about the actuator/valve position, settings, temperatures, alarms etc.
All the information provides System Integrators and facility managers with unique insight and remote access to the HVAC system. The actual HVAC data can be used to optimize the systems performance, improving the indoor comfort and an energy efficient building.
NovoCon® digital control actuators enable continuous monitoring, active energy management and preventive maintenance at the highest comfort level and lowest operating costs. The digital actuators can be used in many building types such as universities, hospitals, offices, and hotels.
The digital actuators also offers built-in I/O's for added functionality, flexibility and cost savings. In some applications this can replace I/O modules from the BMS. A few examples of using the actuators’ I/O’s are:
View the AB-QM™ and NovoCon® digital controls in a HVAC system. The valve absorbs pressure fluctuations and maintains the designed flow. With NovoCon®, the designed flow can be remotely re-commissioned, commissioning up to 64 valves at the same time.
Play video

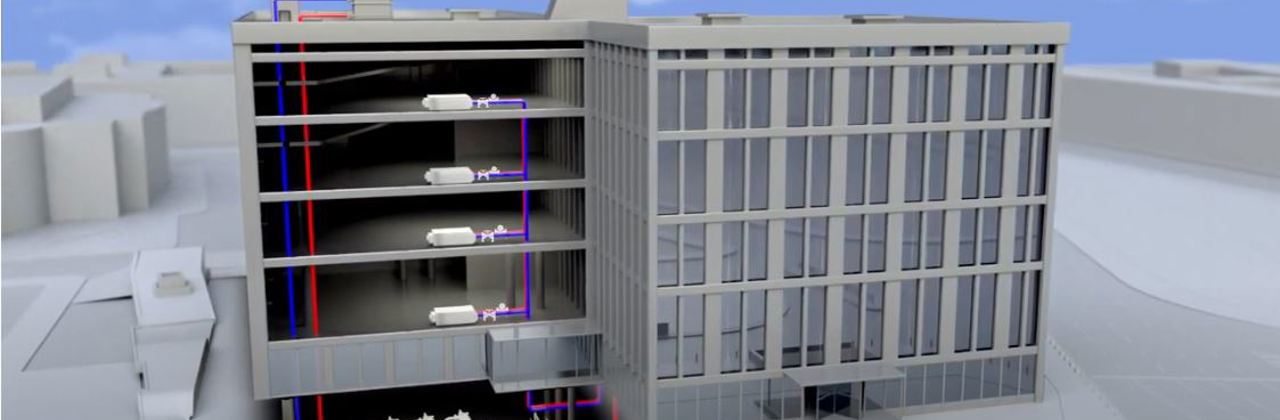

See how traditional control valves perform in a buildings hydronic system and learn how AB-QM™ pressure independent balancing control valves (PIBCVs or PICVs) with NovoCon® digital controls can be an efficient alternative to achieve hydronic system optimization at either full or partial load conditions.
Remote access
Via the BMS system and bus communication all actuators can be remotely accessed. This saves a lot of time during the installation and commissioning of the system as well as during the many years the building is operational.
Continuous commissioning
System data can be retrieved and analyzed in order to optimize the HVAC system. In case adaptions to e.g. setting of design flows are required, it can easy be done. On one, a few or all actuators at the same time. Continuously monitoring and commissioning the system saves time and costs throughout the life cycle of the building.
Predictive maintenance
Don't wait for HVAC components to fail, cause complaints and need for urgent and disturbing service activities. Instead you can see where and when an issue might occur and you can take precautions and act pro-actively.
Flexibility all over
The designers or system integrators of BMS systems can realize customized HVAC solutions for every project. In case the building user wants to refurbish the building, the HVAC system can be adapted accordingly without physical adjustments to the BMS components.
Get best-in-class hydronic performance with NovoCon digital controls. Tailored for AB-QM™ pressure independent control valves, NovoCon® allows complete remote control of the HVAC system – from installation to maintenance. Get a quick tour of the NovoCon® in this animation.
Expand your HVAC 4.0 know-how
Download now
Our advanced Danfoss SET 365 3D design software will help you to design and calculate HVAC systems with Danfoss products. A 1-year subscription is FREE available for students, designers and other interested professionals.
Simple Affordable Comfort - Pressure independent control excellence from the global market leader for over 30 years. Discover how Danfoss AB-QM™ Pressure independent balancing control valves (PIBCVs) can improve system efficiency by eliminating overflows and increasing ΔT.
Danfoss offers a complete range of innovative solutions - ½" to 10", to meet your HVAC system's needs for optimal flow control.
Get your 3D BIM objects and start design HVAC 4.0 for smart buildings.
Read more and Download
Building: OfficeApplication: Hydronic balancing and remote control of 4-pipe heating/cooling change-over system.Challenge: Gaining BREEAM credits for energy monitoring and ensure fast, fail free installation.Solution: Digital NovoCon S actuator combined with AB-QM 4.0 PICVs and ChangeOver6 Energy. The combination balances the system hydronically, allow remote access via a BMS and provides actual energy consumption data per climate panel during both heating and cooling operation.
Building: OfficeApplication: Hydronic balancing and remote control of 4-pipe heating/cooling change-over systemChallenge: Ensure a flexible to use HVAC system with DGNB sustainability certificationSolution: Digital NovoCon actuator combined with AB-QM control valves and NovoCon CO6 combined with ChangeOver6 as a combination balance the system hydronically, allow remote access via a BMS and control the room temperatures during both heating and cooling operation.
Building: OfficeApplication: Climate panels with a four-pipe change-over system for Heating and CoolingChallenge: Establish a modern, innovative HVAC control system optimized for flexibility in (changing) usage of office spaceSolution: Integration of Danfoss field devices with the Building Management System via BACnet bus-communication
Katowice Business Centre is a modern office building where Danfoss hydronic balancing solutions are used; AB-QM balancing and control valves in combination with revolutionary NovoCon® actuators.
In the city of Rotterdam, the Netherlands, a new education and rehabilitation center called ROeR (ROtterdam education and Rehabilitation center) is being built. Terberg Totaal installatie, responsible for the HVAC systems, choose Danfoss NovoCon® Energy for it’s pluggable daisy-chain cabling to minimize cable lengths. In addition the integrated I/O functionality of NovoCon® provided added value.
Modulating, high accuracy, geared actuator with field bus (BACnet MS/TP and Modbus RTU) connectivity used to control pressure independent balancing and control valves type AB-QM DN10-32. Control signal digital: BACnet MS/TP, Modbus RTUControl signal analog: 0-10V/2-10V, 0-20mA/4-20mA
Direct connection to 6-port ball valve actuator with position feedback signal (*1)
Direct connection to 2x PT1000 surface/immersed sensors and emission power indication (*2)
Direct connection I/O: 2x resistance, AO and AI (*3)
Actuator functionality is remotely accessible via the field bus: - Design flow pre-setting - Flushing the valve and terminal unit - Error during closing intrinsic alarm reporting - Alarm if CO6 6-port ball valve actuator is blocked, in manual override or disconnected (*1) - Supply and return temperature readings, emission power indication (*2)- Energy counter (kWh, MJ, kBTU) (*2) - Alarm high/low deltaT and temperature sensors disconnected (*2) - Alpha characteristics setting - Speed selection 3/6/12/24 s/mm - Opening/closing time selection from 18s to 700s - Auto MAC addressing (BACnet only) - Auto Baud rate detection - Flow indication based on measured stroke in l/h
Eu.bac interchangeability approved in combination with PIBCV valve
Supply Voltage: 24V DC/AC 50/60Hz
Spindle position accuracy: ±0.05mm
Cables: Halogen free plug-in available in 1.5m, 5m and 10m length
Temperature sensors: plug-in 2x PT1000 surface or immersed 1.5m length
64 actuators can be connected to the same network
Supports BACnet service Change of Value (COV)
Supports remote Firmware updates
IP Class: 54
Stroke: 7mm
BACnet Testing Laboratories (BTL) listed BACnet MS/TP fieldbus device
Manual override function
Configuration tool available easy configuration, commissioning and firmware updates
Commissioning tool available for addressing, parametrization and hydronic continuous commission
Pulse input for Flow sensor to present real flow over the bus.Warnings via field bus for: No flow and flow out of expectationFull range from DN15-250.
(*1) CO6 application (*2) Energy application (*3) Remote I/O application
Modulating, high accuracy, geared actuator with bus connectivity used to control pressure independent control valves type AB-QM NovoCon® DN 40-100.
Control signal digital: BACnet MS/TP, Modbus RTUControl signal analog: 0-10V/2-10V, 0-20mA/4-20mA
Actuator functionality is remotely accessible via the fieldbus: - design flow pre-setting - flushing the valve and terminal unit - error during closing/opening/calibration alarm - LIN/LOG/α-setting characteristics setting - selectable speed - opening/closing time selection - auto MAC addressing (BACnet) - auto Parity detection (Modbus) - auto Baud rate detection - Flow and energy indication
Supply Voltage 24V ac/dc
Stroke: 20mm
Click on mounting
LED status indication
Modulating, high accuracy, geared actuator with bus connectivity used to control pressure independent control valves type AB-QM DN125-150.
Control signal digital: BACnet MS/TP, Modbus RTU. Control signal analog: 0-10V/2-10V, 0-20mA/4-20mA
Actuator functionality is remotely accessible via the fieldbus:- design flow pre-setting- flushing the valve and terminal unit- error during closing/opening/calibration alarm- LIN/LOG/α-setting characteristics setting- selectable speed- opening/closing time selection- auto MAC addressing (BACnet)- auto Parity detection (Modbus)- auto Baud rate detection- Flow and energy indication- Safety function in NovoCon® L SU/SD. Spring up or spring down for AB-QM DN125-150 valves.
Stroke: 50 mm
Modulating, high accuracy, geared actuator with bus connectivity used to control pressure independent control valves type AB-QM DN200-250.
Actuator functionality is remotely accessible via the fieldbus:- design flow pre-setting- flushing the valve and terminal unit- error during closing/opening/calibration alarm- LIN/LOG/α-setting characteristics setting- selectable speed- opening/closing time selection- auto MAC addressing (BACnet)- auto Parity detection (Modbus)- auto Baud rate detection- Flow and energy indication
