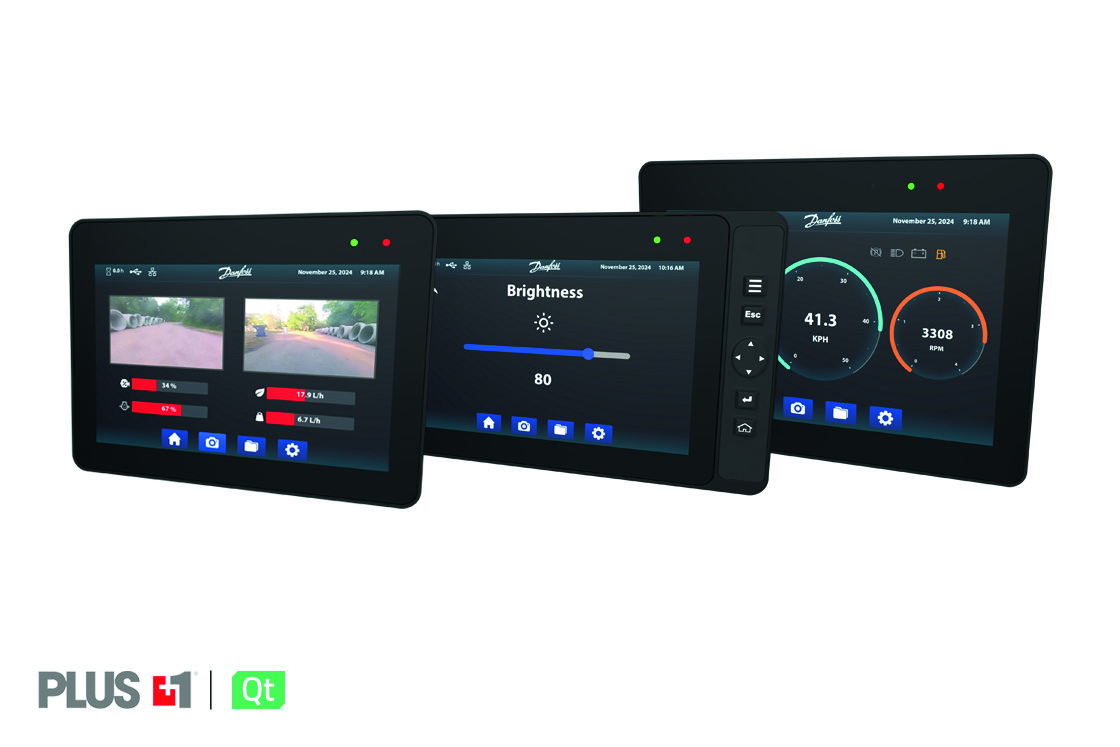

The Danfoss DM1000 and DM1200 series (10” and 12”) bring modern features and extreme durability to the mobile off-highway cab experience. At the same time adding new and advanced features to the DM display line.
The DM1X00 family of fully configurable displays, features outstanding viewability making information easily accessible. The display’s high brightness, optical bonding and anti-glare screen technologies provide market leading sunlight viewability in the light hours. At the same time the embedded light sensor helps adjust brightness automatically in low light. This is improving the productivity in all hours of the day. The high-resolution display experience is enhanced by IPS LCD technology bringing great color clarity at wide viewing angles.
While delivering an outstanding 800 MHz i.MX6 performance, the DM1X00 series is built to withstand harsh operating environments with its IP66 and IP67 rating. The water-resistant screen, allowing for multi-touch while wearing gloves.
The combination of the PLUS+1® Toolchain and Qt Framework provides a powerful set of tools for building modern, high-performance graphical user interfaces. By leveraging Qt technology, developers can design rich, interactive UIs with improved workflow efficiency. UI elements created in Qt Design Studio can be seamlessly integrated with the PLUS+1 GUIDE development environment, ensuring a smooth transition from UI design to application programming and deployment.
Integrated infotainment features such as the file viewer and media player let the operator view documents and media files. This by using the audio line out to connect to the vehicle speaker system.
16:9 wide screen ratio (1280 x 800 resolution)
Flat front design and minimal bezel
Advanced camera solutions viewing up to 4 cameras and while displaying up to 2 at the time
Ethernet, USB 2.0 high speed
Options for keypad with either 8 buttons on each side (16 total) or 8 buttons plus navigation panel (16 total)
Multicolor optical signal (2 RGB LEDs)
Integrated ambient light sensor for automatically adjusting brightness to lighting conditions
Easy programming with the PLUS+1® widget library
Qt-Based UI development for enhanced design flexibility and faster time to market
Download 2D/3D drawings and certificates on PowerSource. Select the required product and then click on the respective tabs to access available drawing files and certificates.
