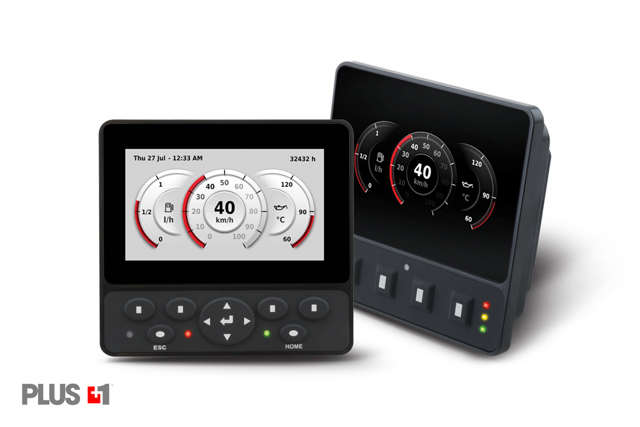

The Danfoss DM430E series 4.3” displays are helping customers taking next step in modernizing mobile machines. At the same time, expanding the PLUS+1® family of mobile machine management products.
As the visual interface for the machine, the DM430E series are providing customer with a modern, yet rugged design. As well as supreme screen viewing quality and a wide range of features.
The optically-bonded and anti-glare coated screen is optimized for usage in all lighting conditions. It is providing outstanding sunlight viewability and wide viewing angles. In darker settings, the light sensor automatically adjusts screen brightness and switches between day and night display themes.

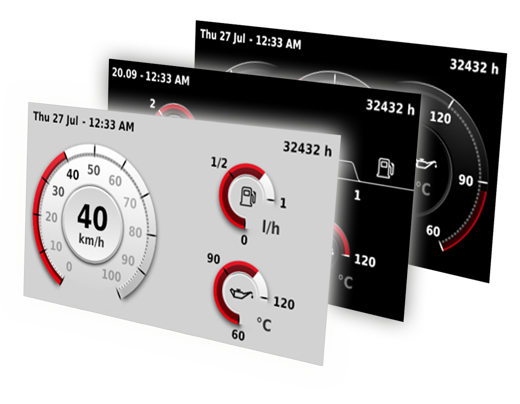

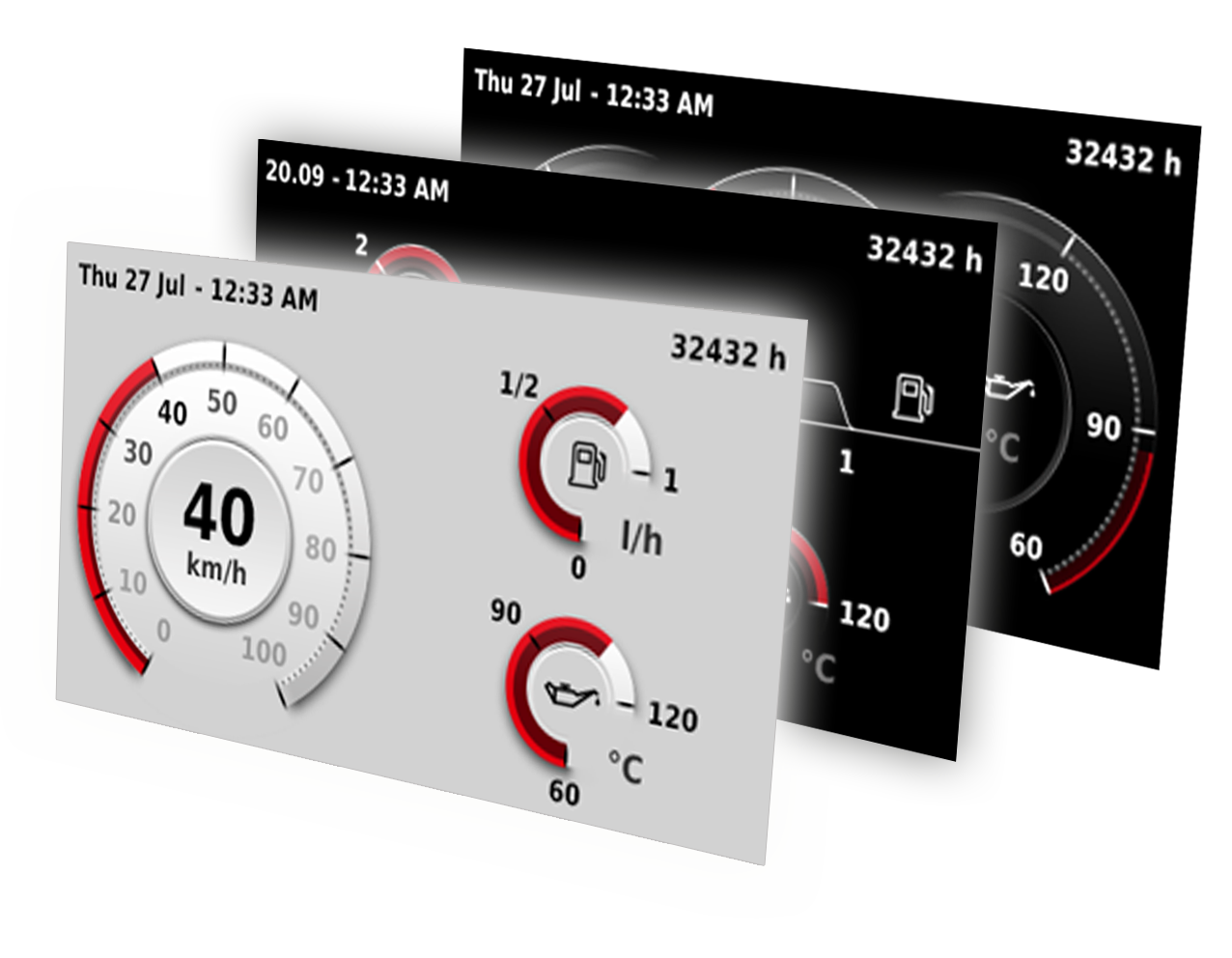

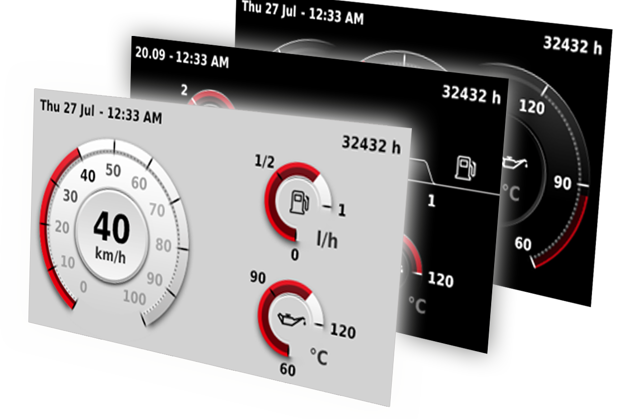

With the engine information center (EIC) application, the DM430E series displays can be set up in a matter of minutes. This, with pre-defined screen graphics and without any programming.
Rugged IP66 and IP67-ratings (front and back)
16:9 wide screen ratio (480 x 272 resolution)
Backlit buttons and up to 6 LED indicators
2 different keypads (traditional 4-button or 11-button navigation layout)
Flexible solution for adding up to 2 CAN bus channels or 6 inputs for auxiliary functions
Supports direct RAM® mount or bracket mount
PLUS+1® GUIDE programmable (vector-based screen editor)
USB device and RS232 (optional)
The DM430E series displays modernize mobile machines with a streamlined cab design while still meeting the need for extreme ruggedness.
The optically-bonded and anti-glare coated 4.3-inch (109mm) color display is optimized for usage in all lighting conditions. This is providing outstanding sunlight viewability and wide viewing angles.
Set up the display with no programming. This, by using the updated engine information center application and access more than 4,000 engine signals.
OEMs have the opportunity of combining the display experience with additional interaction options. By combining the DM430E series displays with the HMR CAN Rotary.
Download 2D/3D drawings and certificates on PowerSource. Select the required product and then click on the respective tabs to access available drawing files and certificates.
