For the most demanding applications, only the highest flow and the highest pressure will do.
The PVG 128/256 are built to take control with up to 500 l/min per section supplied with up to 1200 l/min (300 US gal/min) pump flow.
Rock-solid control and optimum safety are more critical than ever when it comes to the biggest applications and the heaviest tasks.
This new proportional (pre-compensated) load-sensing valve series can easily be built together with PVG 32 and PVG 16 making it easy to build a valve that is adapted to the flow needs of the most demanding application.
Go with our PVG 128/256 and optimize work functions on cranes, mining, drill rigs and marine applications like winches and bow thruster.
Smooth load-independent flow control for optimum productivity and precise operation
Energy-efficient load-sensing technology for maximum safety and a long system life
CAN bus control for lower installation cost and increased diagnostics
Optimized for lower pressure drop and higher efficiency
Compact sectional platform solution for easy integration with PVG 16 and PVG 32
Compact design, easy installation and serviceability
Individual LS A/B relief valves ensure energy efficient, safe and reliable operation
Mechanical actuation as default on all valve sections
Hydraulic actuation
Electrohydraulic actuators PVE (Ratio metric, 0-10V, CANbus) as well as PVHC (High Current PWM) actuators

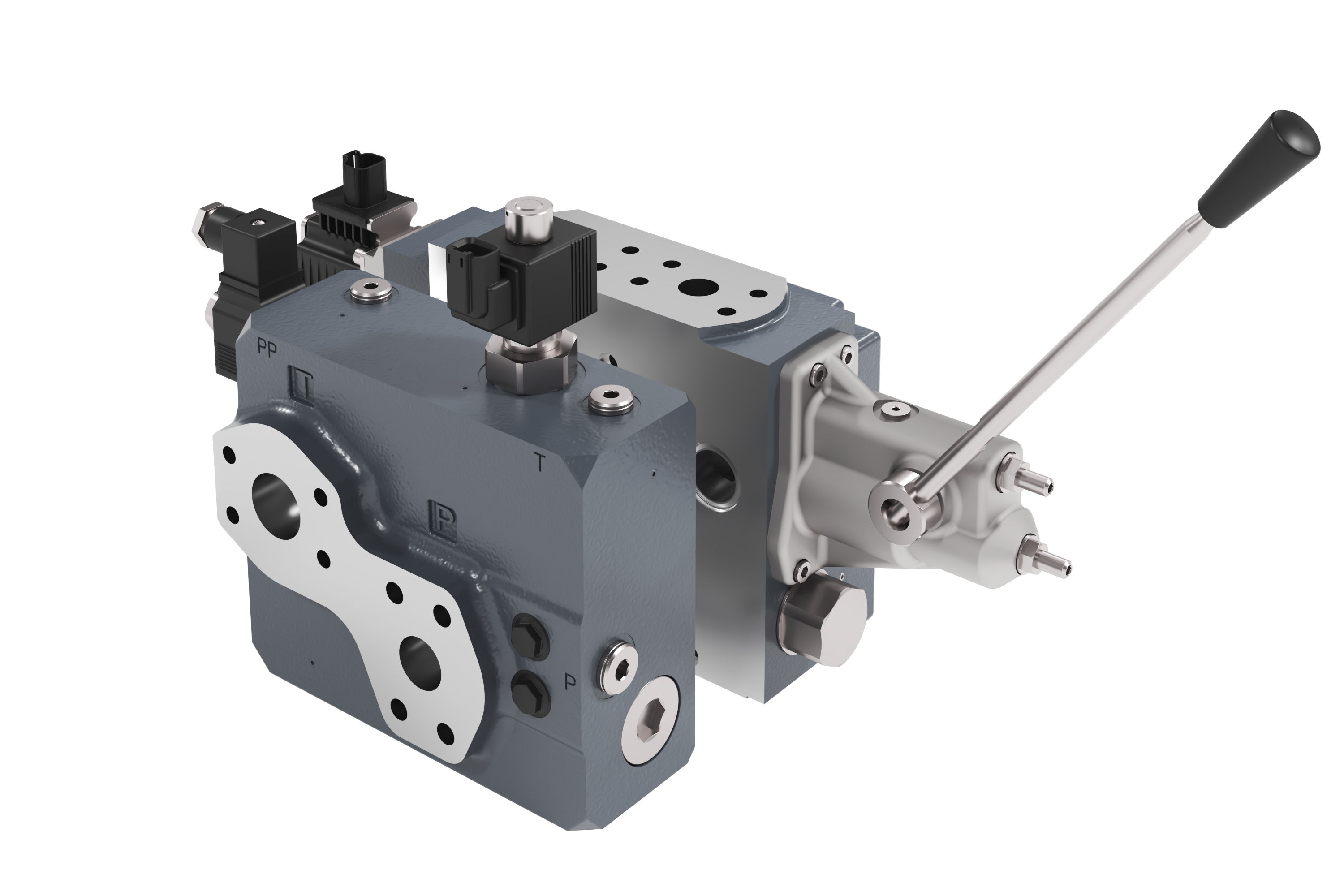

Open center solutions for the PVG 128/256 valve family expand the product line for customer applications with a fixed displacement pump. Solutions include a variety of open center inlets, as well as an open center module that can be used for converting an existing closed center system to open center.

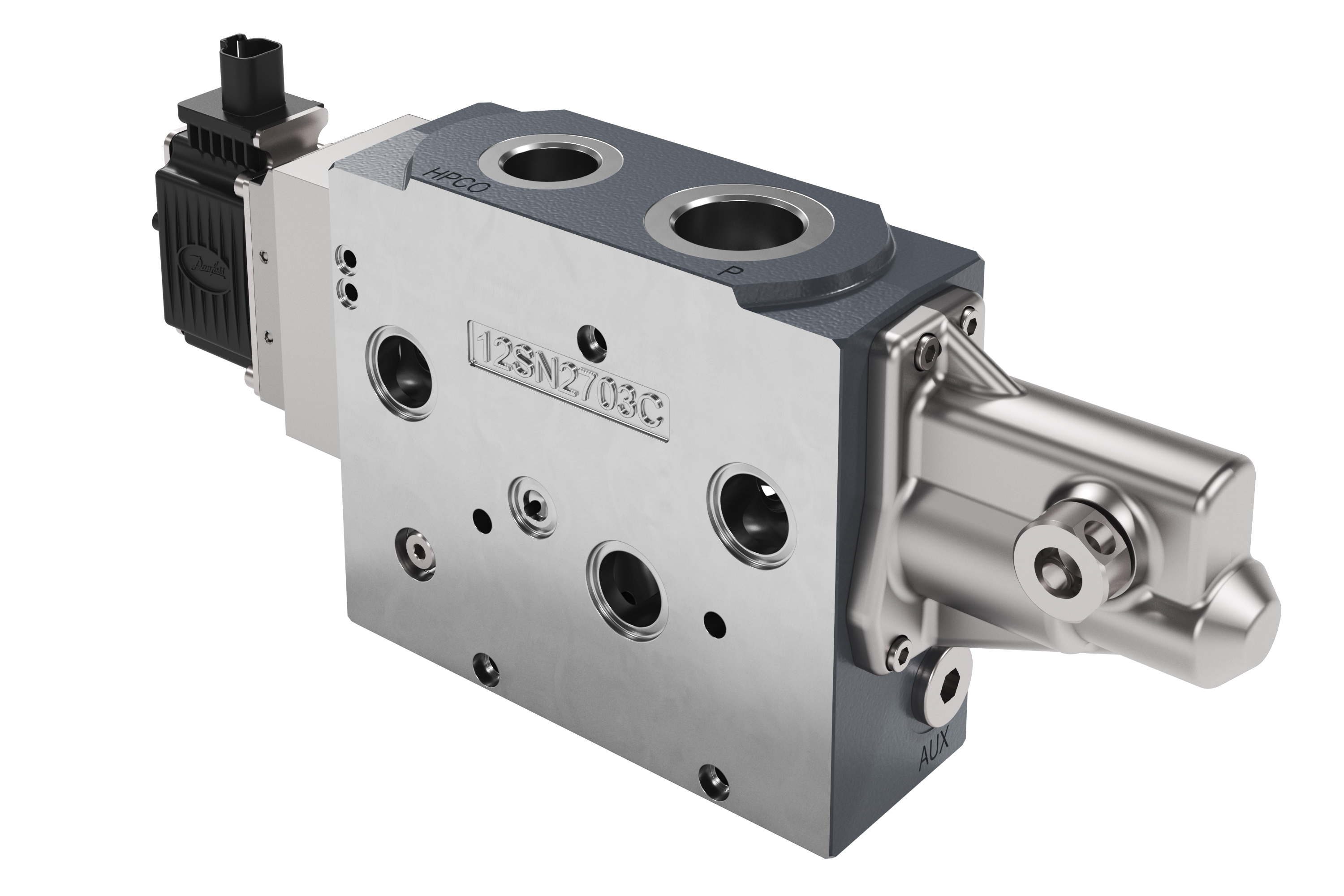

The PVSKM full flow cut-off valve is developed to comply with functional safety standards. PVSKM is a cost effective way to implement a redundant hydraulic architecture for category 2 safety functions

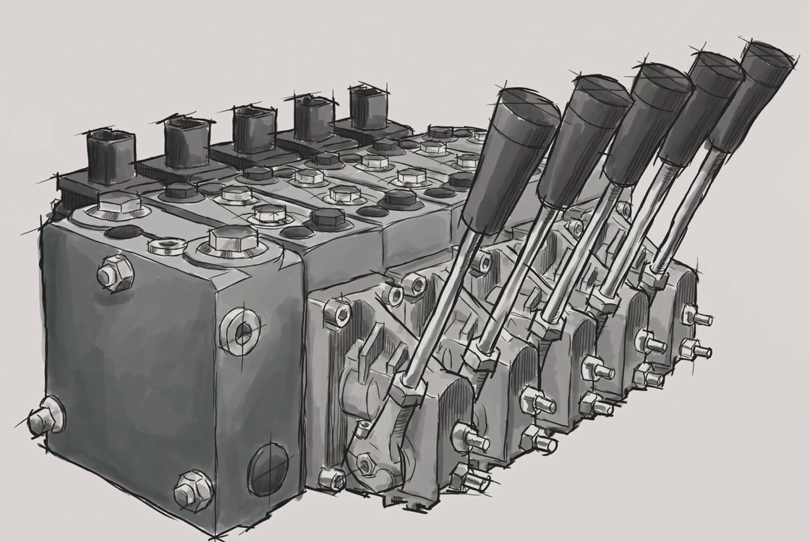

Whether you’re moving the largest of loads or need the precise control that feels like an extension of the operator’s own hand, the family of Danfoss PVG proportional valves can address your unique challenges while delivering increased machine productivity and keeping pace with today’s shorter product cycles.
Play video

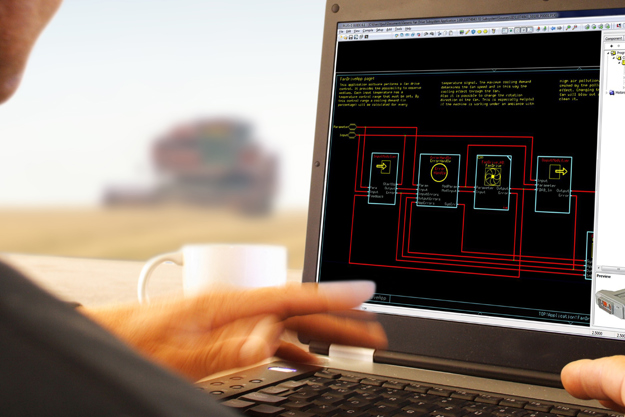

PLUS+1® GUIDE is your gateway to the Danfoss world of advanced mobile machine control.
