MBS 1600, pressure transmitter for plastic processing

Tailored to the specific requirements of the plastics industry

The MBS 1600/1650 pressure transmitter is tailored to the specific requirements of the plastics industry. The high-quality and EMC-immune pressure transmitter comes in two versions:

MBS 1600 – without integrated pulse-snubber
MBS 1650 – with integrated pulse-snubber

View the 3D models:

The integrated pulse-snubber offers a high degree of protection against cavitation and liquid hammer. The fully welded and compact design provides excellent vibration stability and exceptional robustness. MBS 1600/1650 is 100 % immune to VFD-induced electric noise and noise from other direct-coupled electrical fast transients from valves and relays.

Features and benefits

Tailored for use in plastic processing applications
100 % immune to electric noise from VFD and other direct-coupled electrical fast transients from valves and relays
High burst and over pressure capabilities due to fully welded design
Protected against cavitation and liquid hammering
Fast time constant to support industry requirement (< 1 m sec 10 to 90% step response)
Wide operating temperature range (-40 to 125 °C)
Fully welded design and wetted parts made of stainless steel
Vibration and shock stability due to the ridged design
Zero drift due to excellent long term stability
Wide range of electrical and pressure connections
All absolute voltage output signals: 0 – 5 V, 1 – 5 V, 1 – 6 V, 0 – 10 V

Electrical noise

It can cause lost production hours, material waste and ultimately expensive damage and repair of machinery, if electric noise interferes with your plastic molding machinery. See how to avoid this.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	MBS 1600 For Industrial Hydraulic	English	Multiple	07 Jan, 2022	6.8 MB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	Chinese	Multiple	22 Jul, 2020	589.4 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	Italian	Multiple	22 Jul, 2020	527.8 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	German	Multiple	22 Jul, 2020	554.6 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	English	Multiple	22 Jul, 2020	517.5 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	French	Multiple	22 Jul, 2020	520.6 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	Spanish, Castilian	Multiple	22 Jul, 2020	521.7 KB	.pdf
Data sheet	OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650	Danish	Multiple	22 Jul, 2020	519.3 KB	.pdf

Approvals

CE
RoHs
UL

Approval Certificates


Type	Name	Approval authority	Language	Valid for	Download	Expiration date	File type
EU-UK Declaration	Danfoss EU-UK 063R1011.05		English	Multiple	1.5 MB	31 Aug, 2027	.pdf
Manufacturer's Declaration	Danfoss MD 063R1012.00		English	Multiple	397.4 KB	19 Jun, 2026	.pdf

Learning

Learn more about our pressure transmitter range

Articles

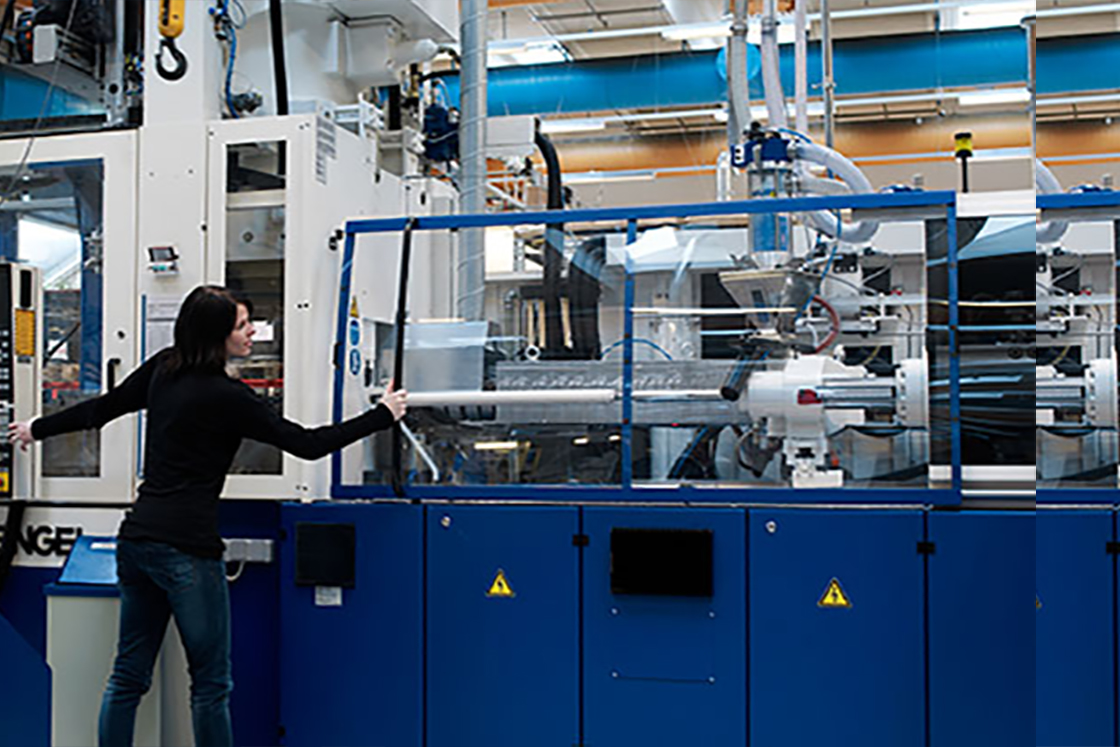

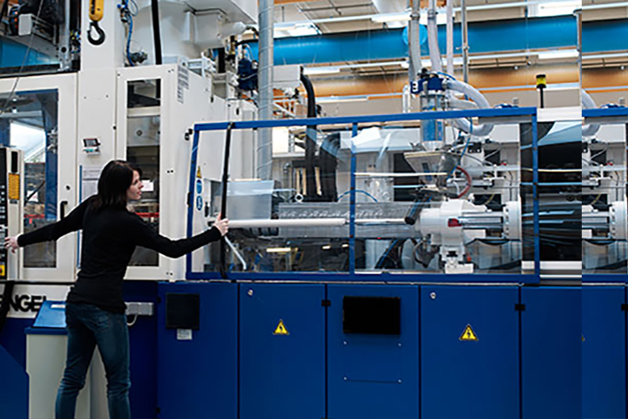

Surf the productivity wave with fast and EMC-resistant pressure transmitters

The plastic industry is one of the world’s fastest growing industries. Competition is tough and to be at the forefront, equipment and processes must be top-tuned. Increasing consumer expectations to product quality and sustainable materials further fuel the development of next generation plastic processing machines.
