EV220B, servo-operated solenoid valves

Servo-operated solenoid valves for multiple applications

EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from 1/4" to 1". This program is especially for OEM applications demanding a robust solution and moderate flow rates.

EV220B 15–50 is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.

Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.

EV220B 65 - 100 is a 2/2-way solenoid valve program for use in robust industrial applications, demanding high flow rates. The valve is designed with cast iron valve body and flanged connection. Water-hammer damped design and built-in pilot filter ensures a reliable operation.

Features and benefits

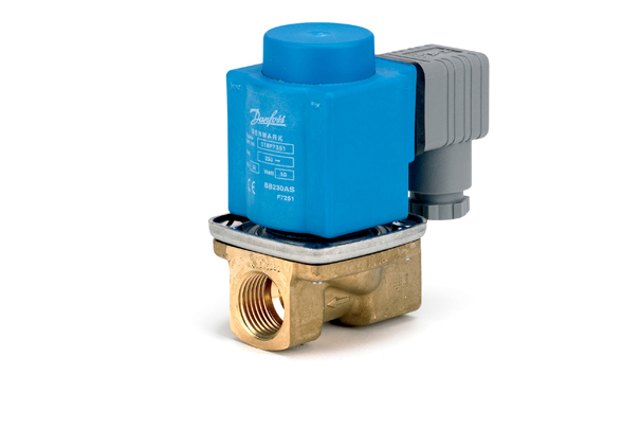

EV220B 6-22

For water, oil, compressed air and similar neutral media
Flow range from 0.2 – 19 m³/h
Differential pressure from 0.1 – 20 bar
Media temperature from -30 – 100 °C
Ambient temperature: Up to 80 °C
Coil enclosure: Up to IP67
Thread connections: From G ¼ – G 1
DN 6 – 22
Viscosity: Up to 50 cSt
Brass version NC and NO
DZR brass version NC
FKM and EPDM
Also available with NPT thread

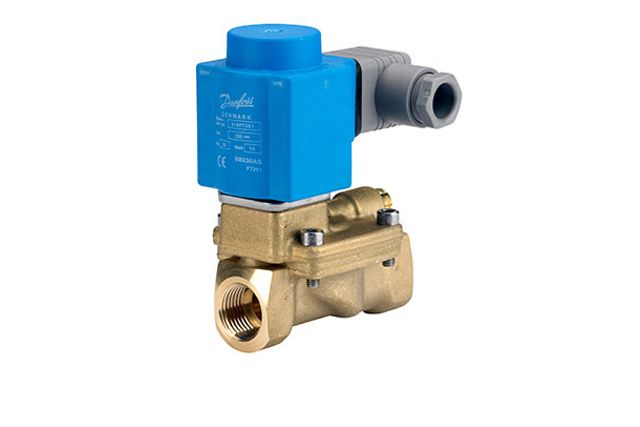

EV220B 15-50

For water, steam, oil, compressed air and non-flammable gases
Flow range for water: 1.3 – 160 m³/h
Differential pressure: 0.3 – 16 bar
Media temperature from -30 – 140 °C
Ambient temperature: Up to 80 °C
Coil enclosure: Up to IP67
Thread connections: From G ½ – G 2
DN 15 – 50
Viscosity: Up to 50 cSt
Water hammer damped
Built in filter for protection of pilotsystem
Adjustable closing time available
EV220B NC and NO brass version for neutral liquids and non-flammable gases
EV220BD NC DZR version for neutral and slightly aggressive liquids and non-flammable gases
EV220BSS NC Stainless steel version for neutral and aggressive liquids and non-flammable gases
Also available with NPT thread

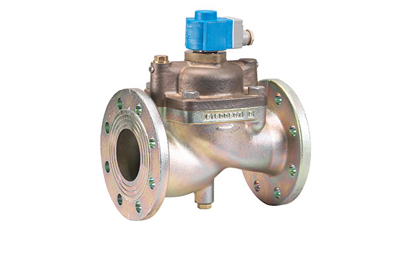

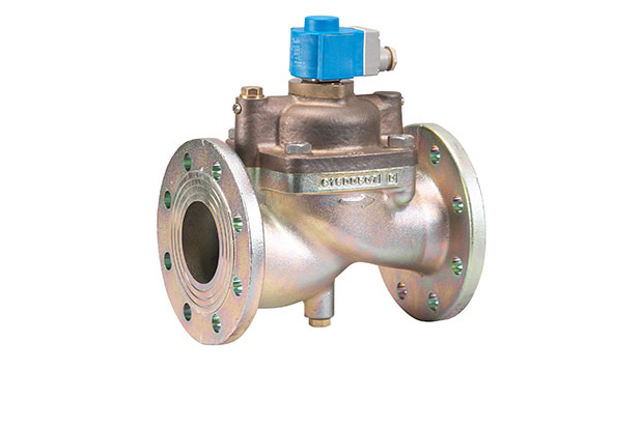

EV220B 65-100

For water and similar neutral media
Flow range for water: 25 – 400 m³/h
Ambient temperature: Up to 80 °C
Differential pressure: Up to 10 bar
Viscosity: Up to 50 cSt
Coil enclosure: Up to IP67
Flange connections: 2 1/2, 3 and 4”
Water hammer damped
Built-in filter for protection of pilot system
Seal material: EPDM and NBR

Find the right valves

The tool is intended to make it easy for installers and end-users to specify the correct industrial solenoid valves for a range of standard applications.

Go to the valve selector

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Data sheet	Direct servo-operated 2/2-way solenoid valves Type EV220B 6 - EV220B 22	English	Multiple	05 Dec, 2024	14.8 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	Polish	Multiple	07 Oct, 2024	20.9 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	German	Multiple	07 Oct, 2024	20.9 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	Spanish, Castilian	Multiple	07 Oct, 2024	20.8 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	Portuguese	Multiple	07 Oct, 2024	20.8 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	French	Multiple	07 Oct, 2024	20.8 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	Chinese	Multiple	07 Oct, 2024	20.9 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves EV220B 15-50	Italian	Multiple	07 Oct, 2024	20.8 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50	English	Multiple	07 Oct, 2024	20.6 MB	.pdf
Data sheet	Servo-operated 2/2-way solenoid valves type EV220B 65-100	Polish	Multiple	09 Aug, 2020	2.3 MB	.pdf
Data sheet	Solenoid valves Type EV220B	English	Multiple	17 Feb, 2023	11.1 MB	.pdf
