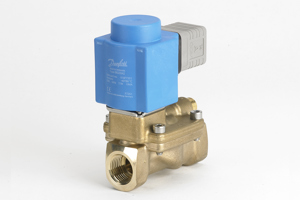

EV228BW 15-50 is an indirect servo-operated 2/2-way solenoid valve. The valve body is made of ECO brass or stainless steel and uses next-generation EPDM sealings.
The valve has a built-in pilot filter, which makes it the ideal choice for water inlet and drinking water applications where RISE, SINTEF, ACS, WRAS or PZH approvals are required.
The EV228BW function is UN latching, which minimizes power consumption, since the coil only needs power supply for max 1 to 2 seconds while opening/closing.
Enclosures up to IP67 ensure optimal performance even under critical working conditions.
Clip-on coil
Flow range for water in Kv: 4 – 40 m³ / h
Differential pressure: 0.3 – 10 bar
Media temperature from -30°C – 70°C
Ambient temperature: Up to 80 °C
Coil enclosure: IP67
Thread connections: From G 1/2 – G 2
DN 15 – 50
Water hammer damped
Built-in filter
Body material in ECO brass (Lead free < 0.1 %) or stainless steel
Next-generation EPDM sealings recommended for drinking water
Find answers to the most frequent troubleshooting questions for normally closed and normally open solenoid valves.
Find the most suitable solenoid valve and coil for your project from the Danfoss product portfolio.

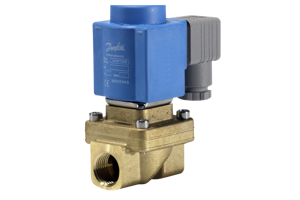

EV250BW 10-22 is an assisted lift operated 2/2-way solenoid valve. The valve body is made of ECO brass and uses next-generation EPDM sealings. The valve is a compact valve used for process water with low differential pressure, e.g. process inlet and drinking water applications where drinking water approvals as RISE, SINTEF, ACS, PZH and WRAS are required.
The EV220BW is an indirect servo-operated 2/2-way solenoid valve designed for drinking water and it is available in NC or NO. Valve sealings are available in EPDM, and the valve body in ECO brass or stainless steel. Wetted materials in accordance with 4MSI, DVGW, KTW – W270, and the valve program has RISE, SINTEF, WRAS, ACS and PZH approvals as well for cold and hot water applications.
EV220S is a range of streamlined compact servo-operated 2/2-way solenoid valves with connections from 1/4" to 2", special designed to fit in applications where space is limited
EV210BW 1.5-6 is a direct-operated 2/2-way solenoid valve for universal use. It is a very robust high-performance valve program, designed with EPDM seal and lead-free dezincification resistant Eco brass for drinking water.
EV221BW 10-22 is a direct servo-operated 2/2-way solenoid valve. The valve body is made of ECO brass and uses next-generation EPDM sealings. The valve has a built-in pilot filter, which makes it the ideal choice for water inlet and drinking water applications where drinking water approvals as RISE, SINTEF, ACS or PZH are required.
