One option to update your Alsmart® controller firmware is by using the Danfoss Alsmart® Service Tool software. Have a look at the video to learn how to use it.
One option to update your Alsmart® controller firmware is by using Python software. Have a look at the video to learn how to use it.
One option to update your Alsmart® controller firmware is by using the USB-C port. Have a look at the video to learn how to use it.
The side connector is included with each expansion module, so there is no need to purchase it separately. However, it is also available as a spare part with a defined part number.
It depends. The model of the main controller (AS-CX06) will have direct influence on the maximum allowed number of extension modules. For more details, take a look at the “Connections” sector here in the data sheet for more information: https://assets.danfoss.com/documents/455390/AI488320847739en-000202.pdf
Danfoss is constantly improving the features of the Alsmart® controllers.
Therefore, updates are released from time to time.
The table below displays the compatibility map for the Alsmart Design as of April 2025.
You can assemble a 6-way connection cable by following our step-by-step guide. Click the here for the full instructions

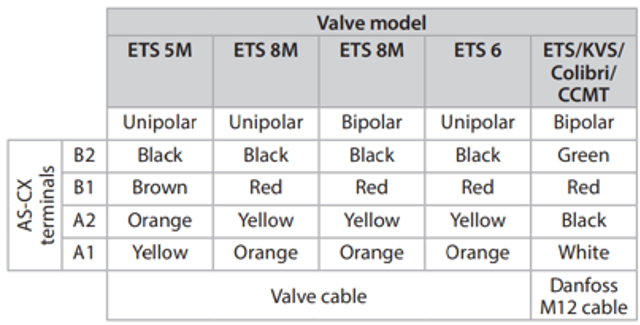

Danfoss valve connections must follow the table found on Installation Guide.
Standard ones as Pt1000, PTC100, NTC10k and NTC5k. Custom sensors can be also created according to application needs.
Yes, since they use different ports
For AO it is 15mA; for SSR it is 0.5A
Yes
There is no specific Power Supply for the Alsmart AS-CX06 main board. A regular transformer can be used (check the datasheet for further informations related to load requirements). The AK-PS power supply can also be used.
Output 100VDC/240VAC
30m. Check the requirements of the cable and impedance for each valve
There are some specific patterns defined by BIOS to provide feedback before the application starts; e.g. to signal boot up, upgrade, errors, expansion running, expansion error. When the application starts it takes control of LED. We provide a library with default usage but it can be changed
Yes, power supplies are isolated
Yes, Expansion lost connection: green=ON, orange=OFF, red=ON
Yes, since it meets the sum power of all expansion modules.
The limitation we have is a few metres, less than 2m
The Alsmart Design is only intended to be used for approved customers, this is to ensure the best-in-class support from the local Danfoss Office.

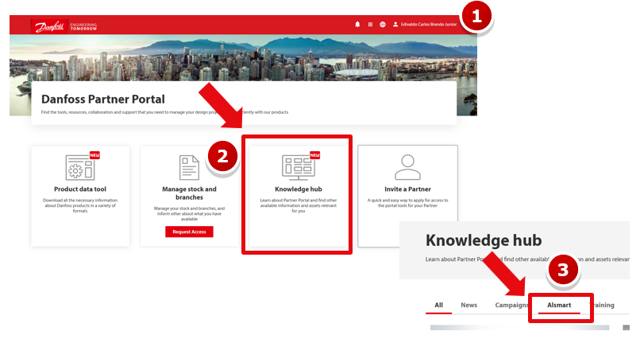

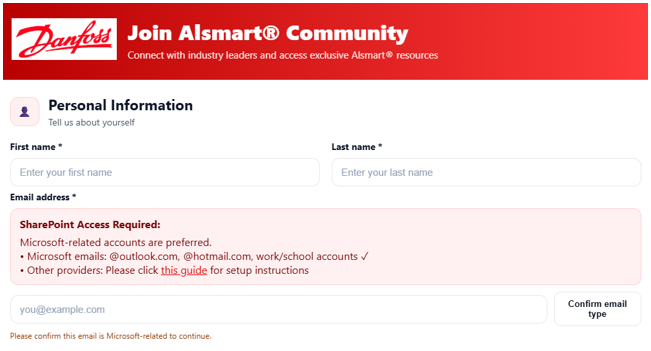

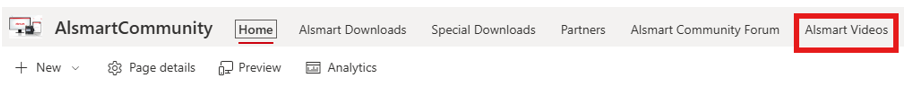

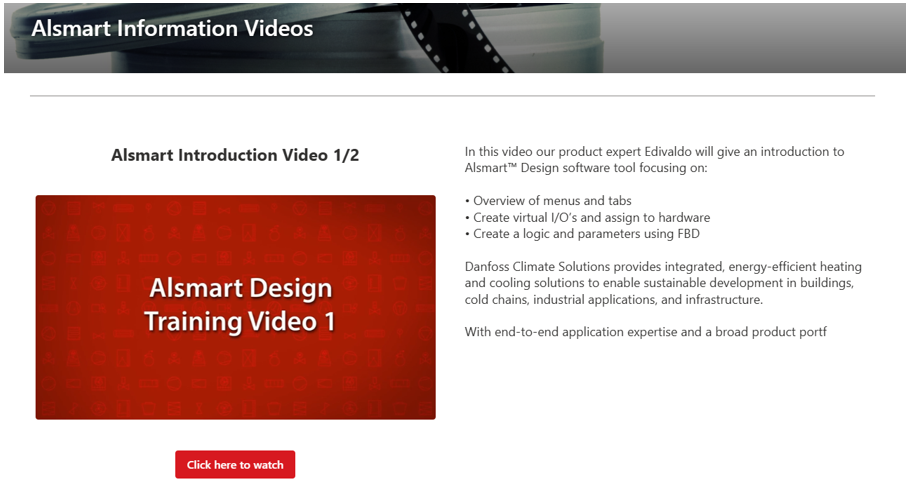

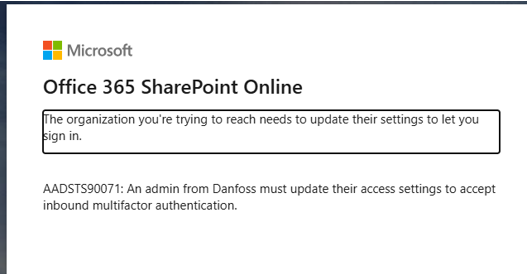

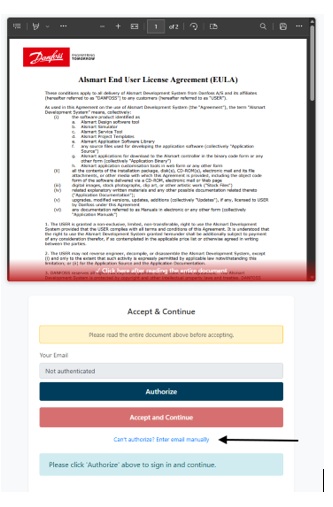

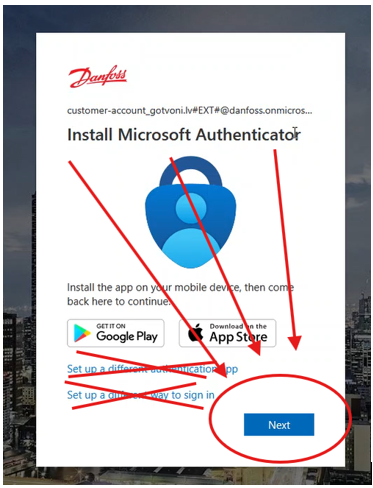

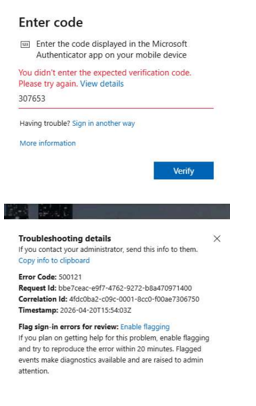

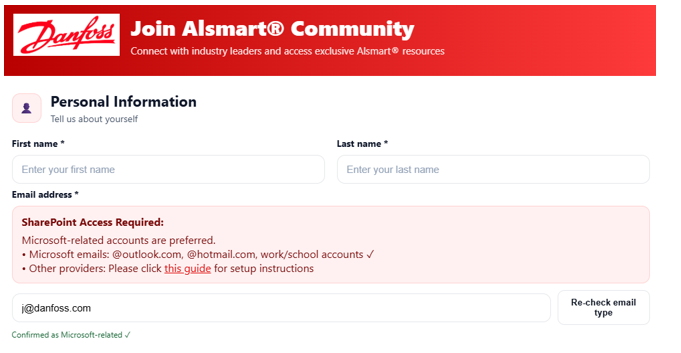

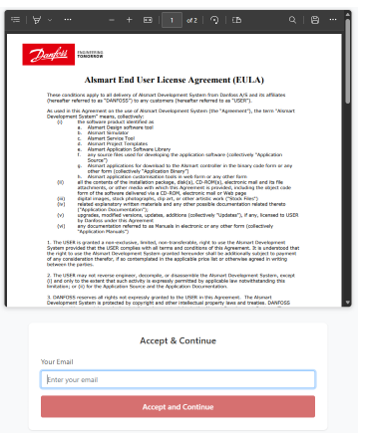

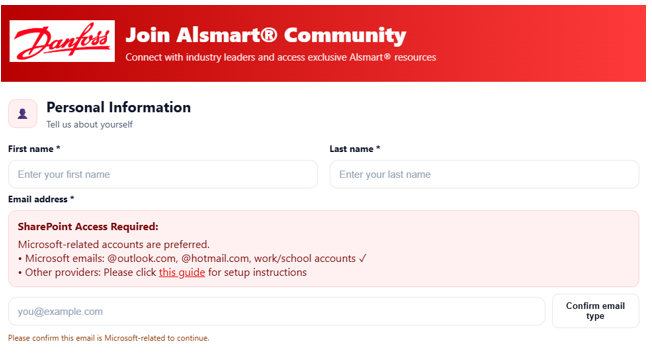

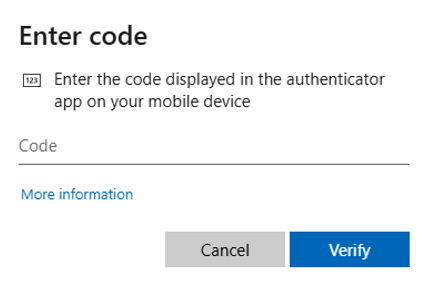

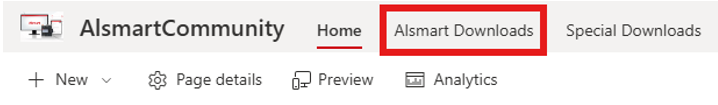

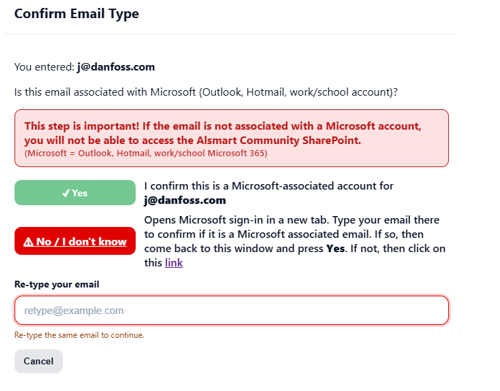

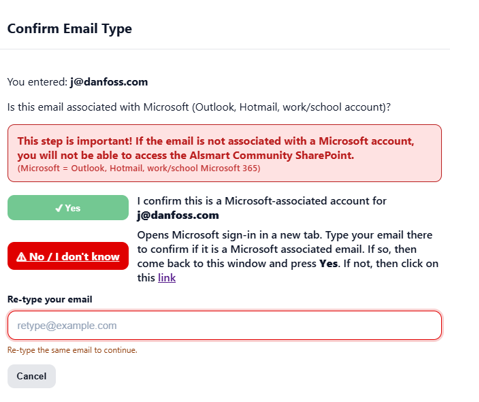

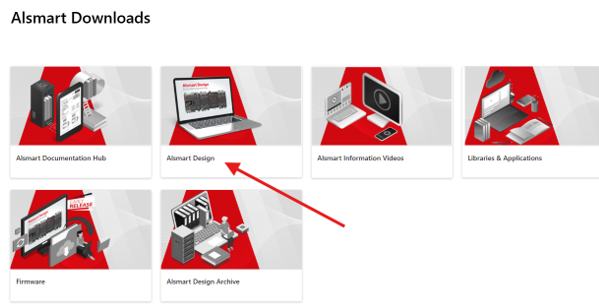

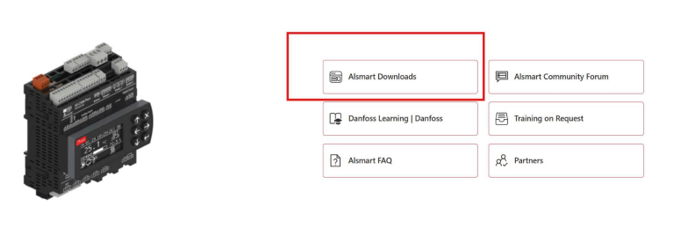

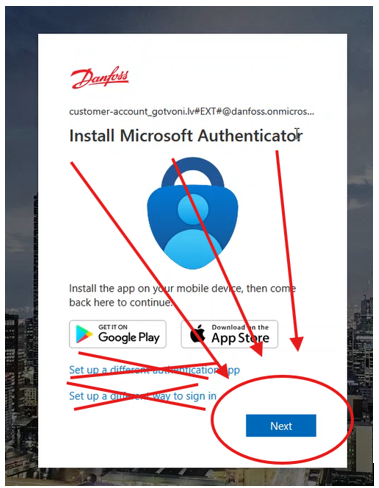

You can find the Alsmart Design, libraries, templates, videos & other tools under the Partner Portal. An approval request will be sent to Danfoss. Steps to be followed in case you would like to sign up for the Partner Portal:

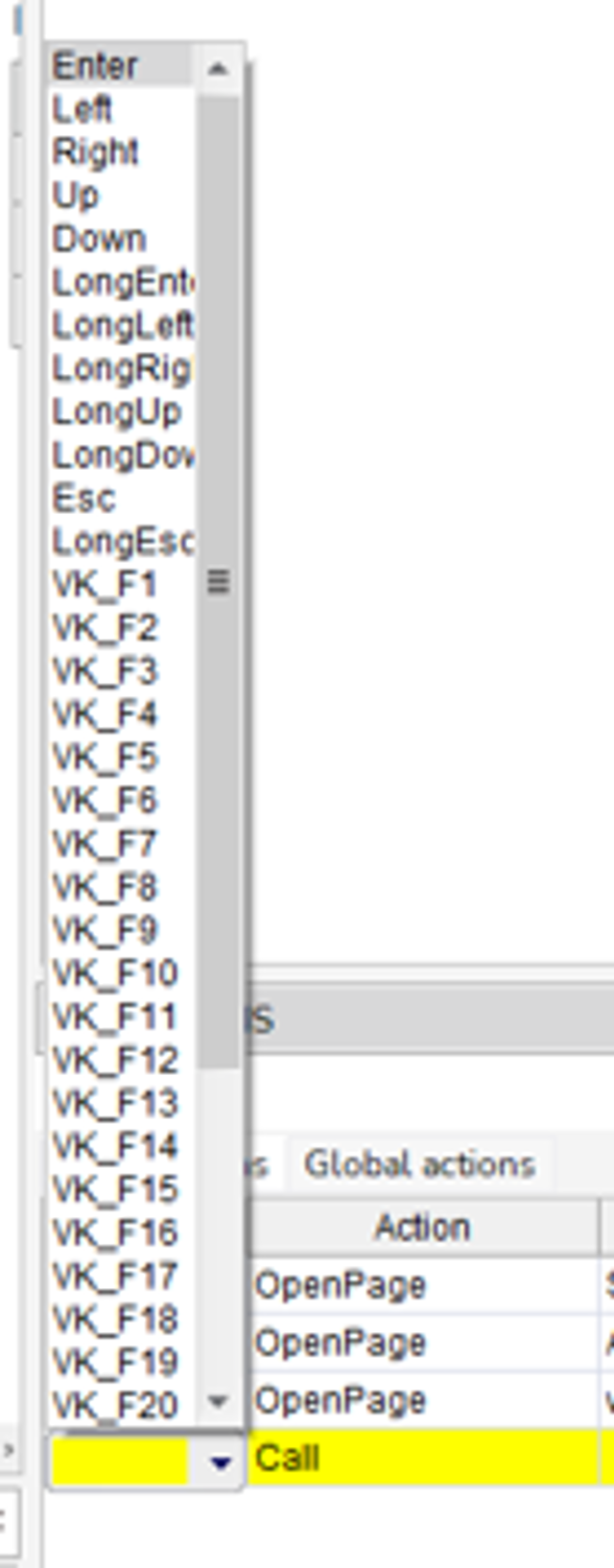

In case you want a page associated with a parameter to appear/ disappear, you need to use VK_Fxx.Therefore the virtual button, which opens the page, will be set only if the desired condition is true.

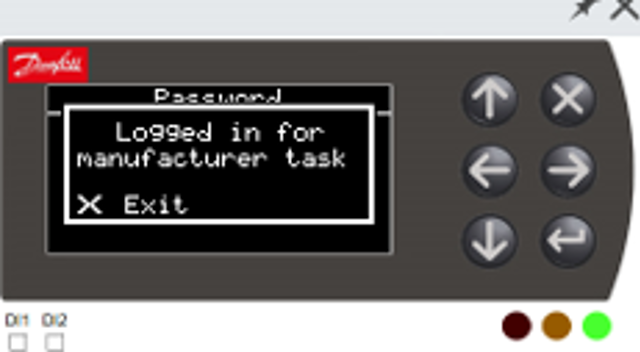

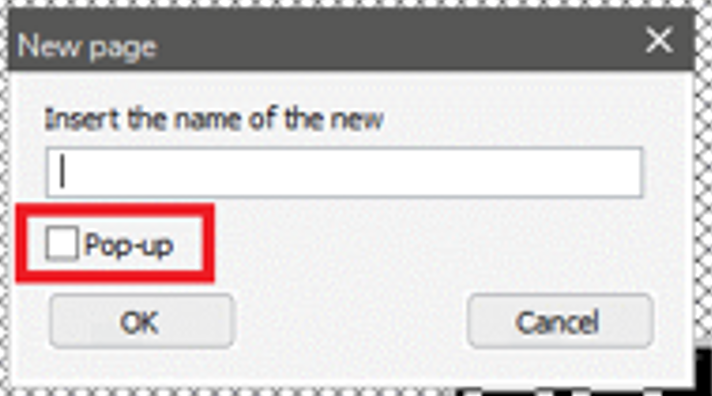

It is a pop window that you get on top of the current, generally with some quick information. It´s also known as "splash screeen". It typically does not occupy the full screen and you can get back to the previous.
To date, the web server is inside the aspkg package, so not customizable.
The API allows a library to be developed that enables this
