Analogue thermostats are electronic control units which allow you to set the heating system type and adjust control parameters.3 types of thermostats are available:

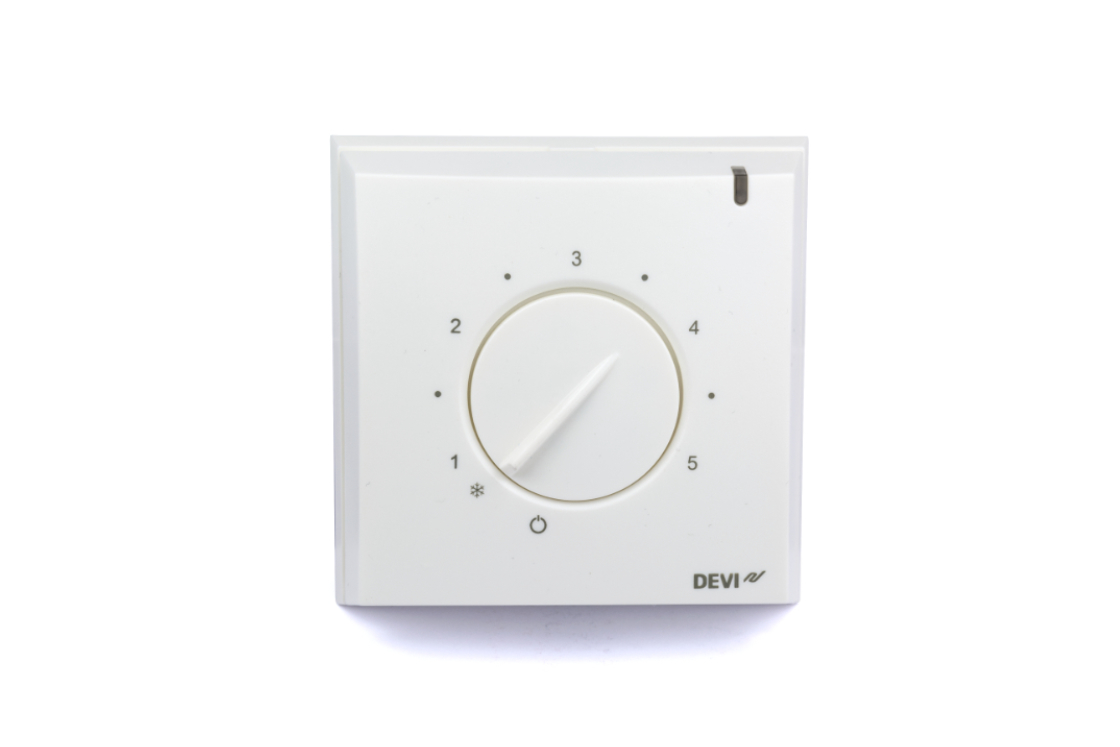

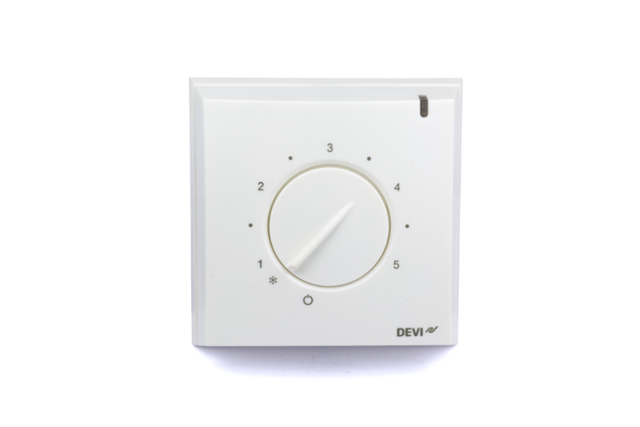

DEVIreg™ 130/132 is a line of simple electronic 16 Amp thermostats which can be installed directly on the wall. The thermostats have only one button for adjusting the temperature and for OFF mode. Furthermore, they have an LED indicator showing standby (green light) and heating (red light) periods.

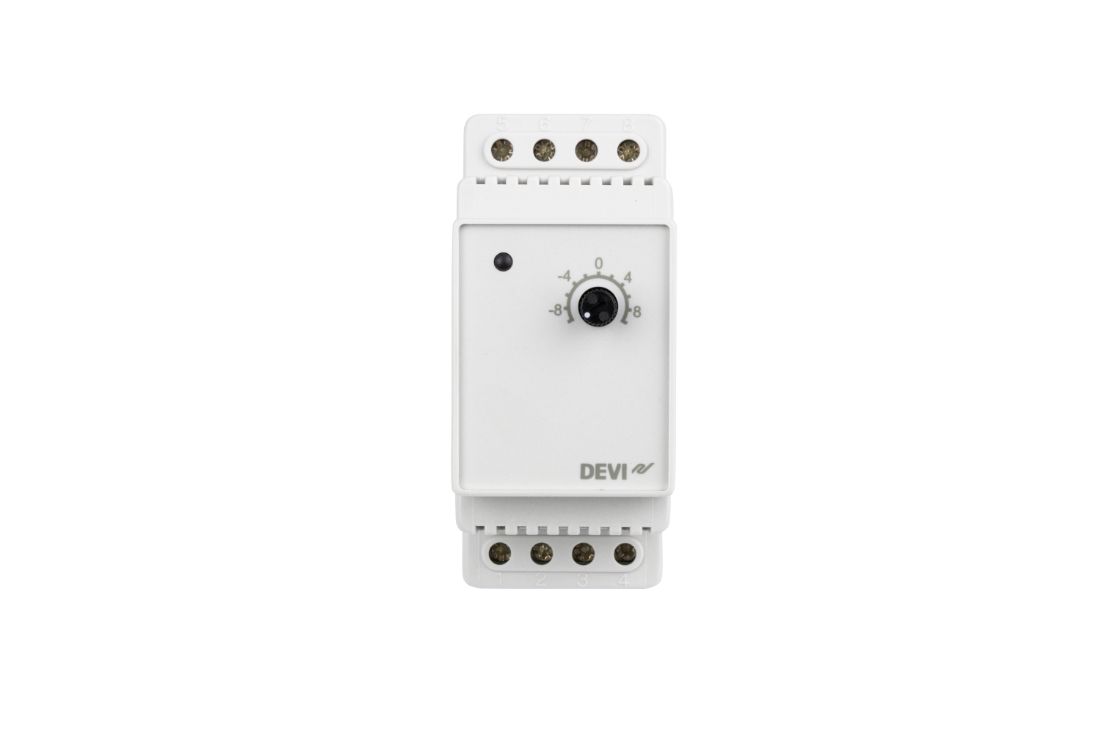

DEVIreg™ 330 is a line of simple electronic thermostats for installation in electric cabinets with a DIN rail attachment.
The thermostat must be installed via an all-pole disconnection switch. It has an LED indicating standby (green light) and heating (red light) periods.

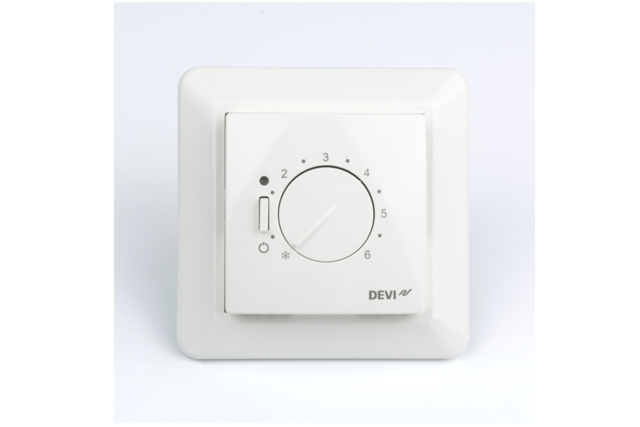

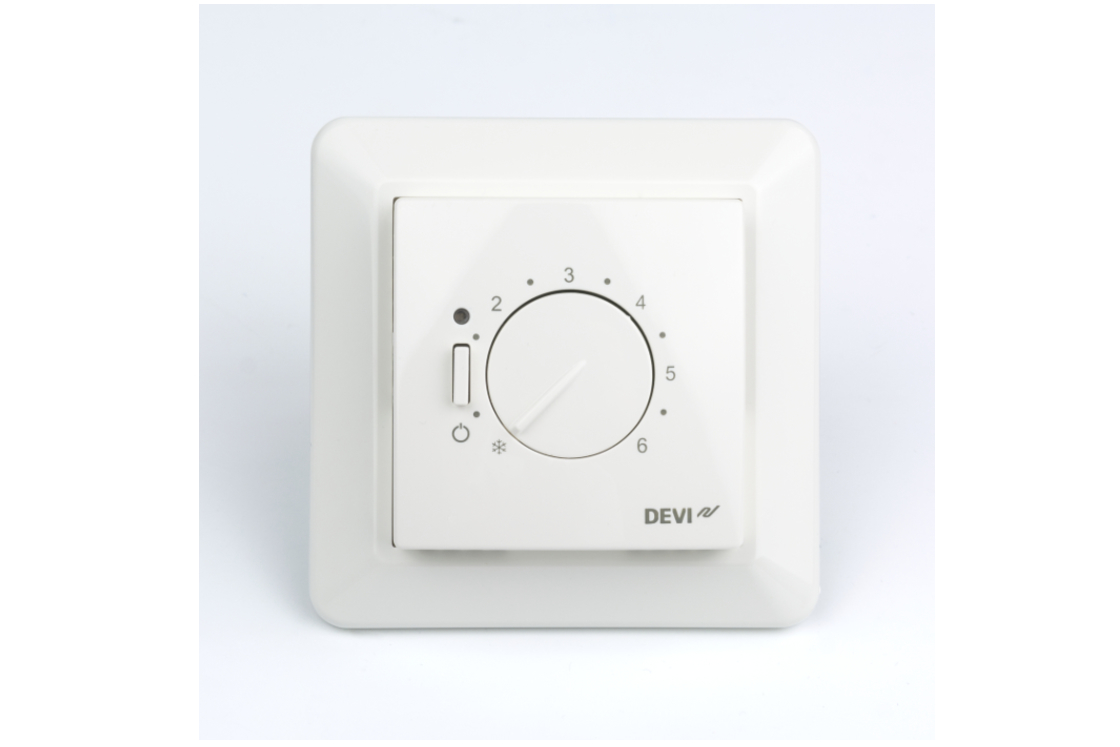

DEVIreg™ 530/531/532 is a line of simple electronic 15 Amp thermostats with a 2-pole switch and for flush-mounted fixing. The thermostats are used to control indoor floor heating systems.
DEVIreg™ Hotwater is an electronic programmable controller with 4 channels for DIN rail mounting. Every channel can be set individually to maintain hot water with the option to disinfect manually or on a schedule. 2 sensors have to be used to measure the temperature for each channel.
Building Management System (BMS) control is possible through the Modbus RS485 serial interface.
Precise control of temperature
Automatic control of electric heating system
Economic control of electric heating system
Possibility of in-wall, on-wall, or DIN rail installation
Easy temperature setpoint selection
At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date. Depending on the product, the product guarantee is valid for two years, five years, or twenty years. Product warranty covers costs for:
Heating mats are used for the installation of a thin layer of tile adhesive, self-leveling mixture, or similar. The standard minimum thickness of the floor layer is 5-8 mm while the thickness of electric heating mat is 3–4.5 mm. This minimises the floor level increase. Electric heating mats consist of a thin cable securely fixed on self-adhesive glass-fibre mesh, usually of 50 cm width. Thin heating mats are manufactured as ready-made heating sections with a specific area (i.e. 0.5, 1, 1.5 … 12 m²) including a power supply cable (cold lead) and hermetically sealed connections.
Heating cables are used for a variety of applications, including indoor comfort floor heating and total heating both for small houses as well as large commercial buildings. Heating cables are mostly used in connection with new building or larger renovation projects.
Find relevant accessories by following this link
You can see all our videos about electric heating on a dedicated playlist on YouTube. Follow the link below.
In order to clarify the project data for different applications use the technical request forms you find on this page
The Plugin supports your engineering and design journey by making your work faster due to simple functionalities in calculating all lengths, dimensions and product data of cables and mats. It covers all applications within Electric Heating projects: Electric floor heating, Ice & Snow melting systems, Pipe tracing, Cold stores, Sport fields, Vineyards etc.By utilizing Plugin, you will reduce design time for the project, provide all necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It means all project information can be consolidated in one file.
Plugin can be used with AutoCAD 2021.
