LX cables -for electric floor heating

LX Cable

LX cables - easy, flexible, reliable warmth

Danfoss offers reliable LX cables which are suitable for both residential and commercial applications. LX Cables are typically installed with renovations, in bathrooms, basements and kitchens to heat tiles, stone, or engineered wood flooring.

Danfoss LX Cable offers the same quality cables that are embedded in our LX Mats, but the loose cable option allows for flexible installation. To improve the ease of installation, we have also given both the cable and the cold lead of the LX Cable a round profile to prevent curling and make it easier to bend. It also features fully screened twin conductor cables and an easy-strip, reinforced single-cable cold lead. Danfoss LX Cables are cost-effective, versatile, easy to install, and exceptionally durable.

Features and benefits

Genuine 20-year warranty
Easy to install - flexible installation options
Minimal thickness-only add 3/16" height to the floor
Safety approved for wet locations
Single point connection
Eliminates electromagnetic fields (EMFs)

Technical Data:

Cable Construction: Twin Conductor

Cable Diameter: 3/16" (4.8mm)

Rated Voltage: 120V, 240V

Max. Rated Temperature: 212°F (100°C)

Conductor Insulation: Teflon™ FEP

Outer Insulation: PVC

Installation

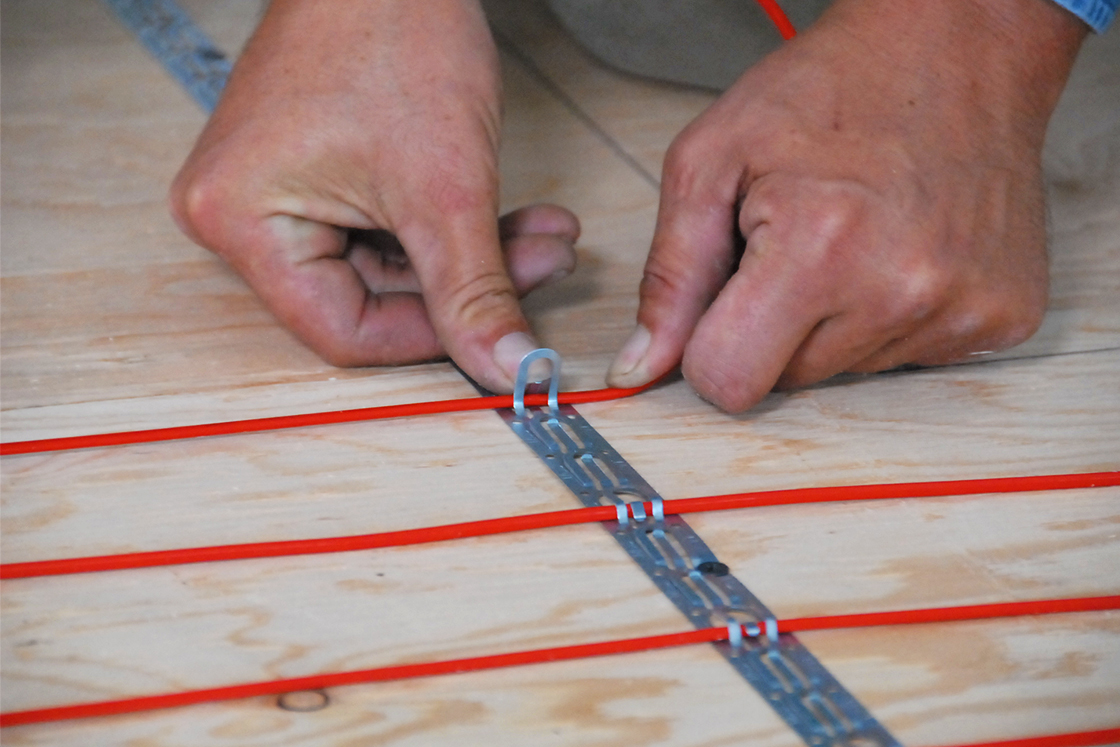

Install the LX Mat & Cable system in minutes. Video includes install tips and tricks.

Flexibility

LX Cable strapping may be spaced with 2", 3", or 4" centers allowing for easy in-field adjustments for odd shaped areas or rooms, as well as the ability to customize the wattage output per square foot.

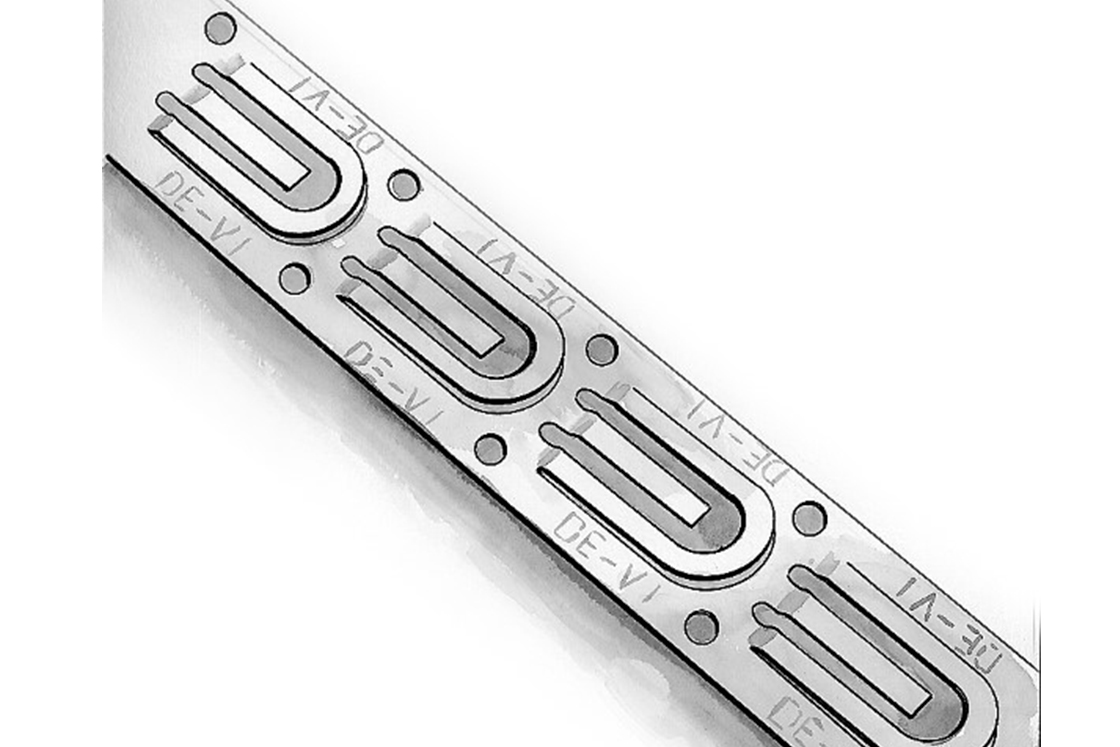

Attach Strapping

Attach the LX cable strapping to the subfloor (3 - 4" apart).

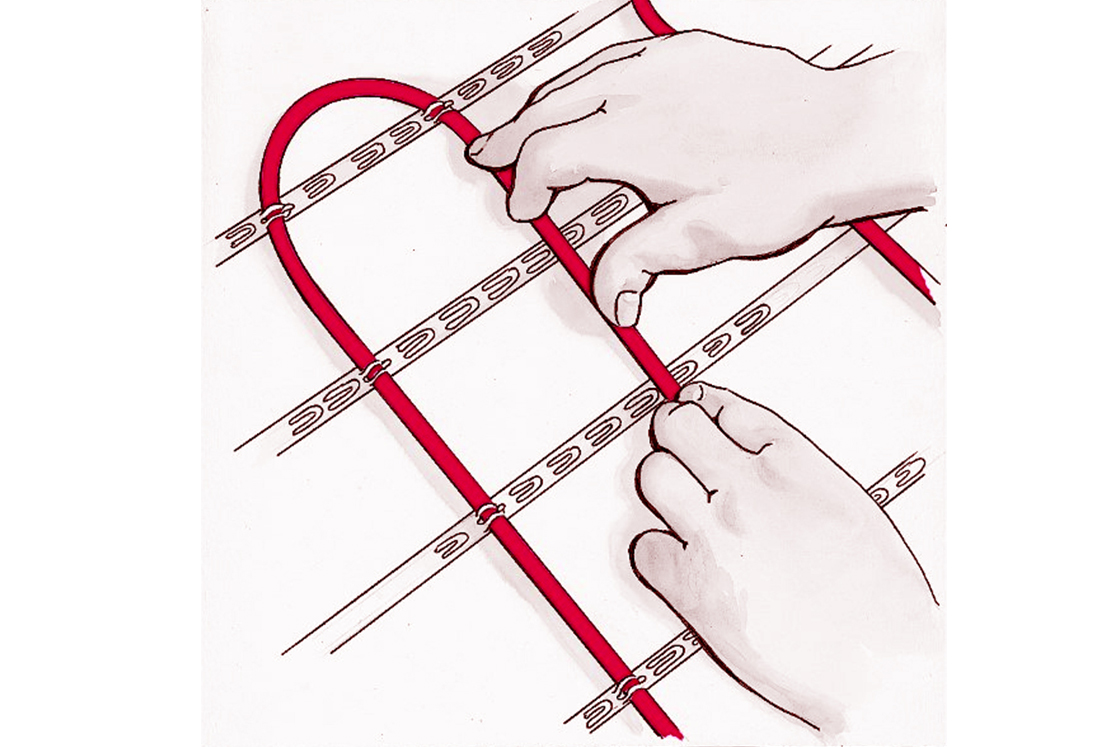

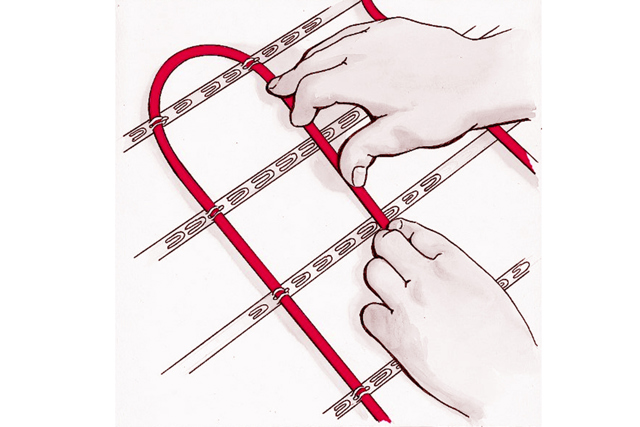

Loop Cable

Loop the LX cable through the strapping tabs (3" is standard spacing).

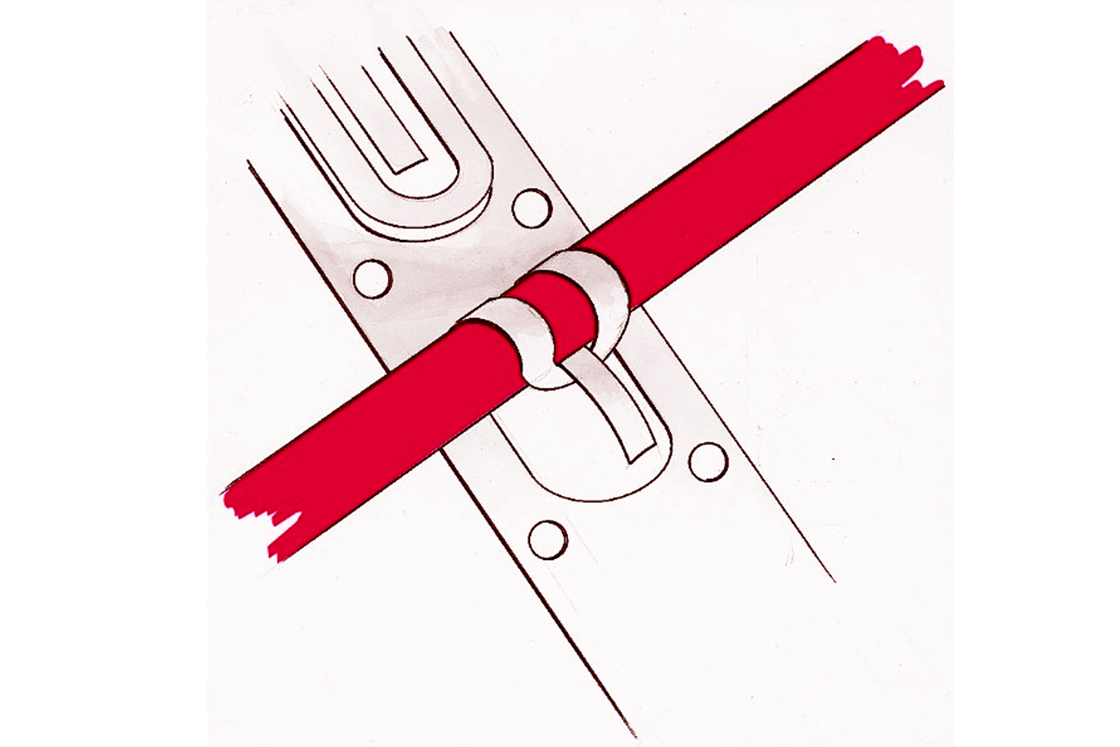

Secure Cable

Bend the tab on the cable strapping down to secure the cable in its place.
