DS Series snow and ice melt controllers

DS-224 & DS-824

The DS-224 and DS-824 are economy controllers primarily designed for hydronic pavement snow and ice melting applications.

The units can be powered from a 24VAC/VDC source and are available with an integrated or remote precipitation sensor.

Features and benefits

Designed for low voltage hydronic and battery powered systems
Automatic activation provides lower deicing costs
24 VAC/VDC Operation, only 20VA required
Replaceable precipitation sensor
Easy installation
Adjustable temperature trigger point
Adjustable delay off cycle, selectable 30-90 mins. or 2-6 hrs.
Selectable low temperature cut-off

Products

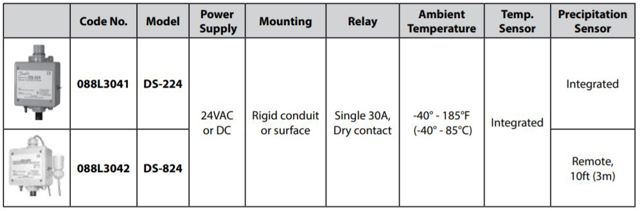

Technical data

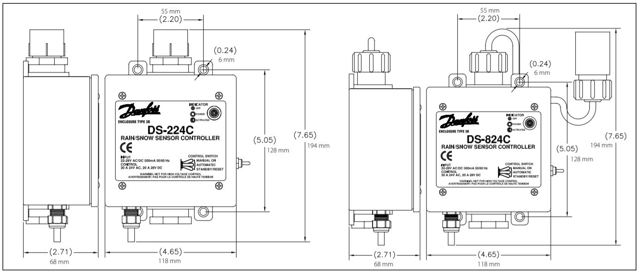

Dimensions
