ATA solid fuel draft regulator

Product store

ESBE ATA draft regulator is a self contained thermostatic expansion control device intended to regulate the temperature of solid fuel boilers without requiring any electrical installation or complicated linkage. The thermostatic control head senses the boiler temperature and regulates the air damper position, controlling combustion air flow.

Features and benefits

Fully adjustable within the range of 95 - 203°F (35 - 95 °C)
Directly threaded into the boiler tank
Replaceable thermostatic element
Available ATA draft regulator in European G thread connection

Products

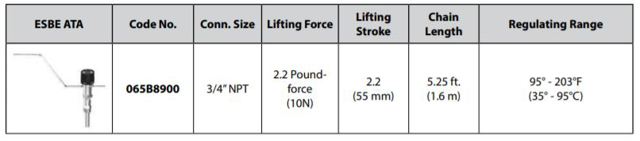

Technical data

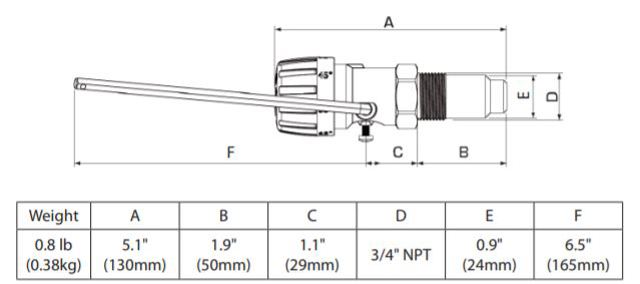

Dimensions

Documents
