Thermostatic mixing valves

ESBE Thermostatic Mixing Valves (TMVs)

Keep water temperatures safe in point of source applications with thermostatic mixing valves.

The three way mixing valves feature anti-scalding technology and are available in a VTA Series Lead Free style or a VTA 570 mixing and diverting style for closed loop applications.

Features & Benefits

Snap-on cover prevents debris as well as unauthorized adjustment or tampering
Compact lightweight design used in domestic & radiant heating applications
Suitable for hot water recirculation
Quiet operation with long lifespan & easy maintenance
Anti-scald & anti-legionella protection
A variety of connections available:
• Threaded body (FNPT)
• Solder Union
• CPVC Union

Products

VTA Series Lead Free

The 3-way ESBE VTA Series thermostatic mixing valves replace Series 20 & 30MR styles of valves and are designed for point of source in domestic hot water distribution systems and/or regulation of supply in hydronic heating systems.

They are available in a range of connection sizes, types, and temperature ranges. See below.

VTA thermostatic valve with female NPT connections

Female NPT Connections

Code No.	Connection Size	Cv	Temperature Range
065B8868LF	¾”	1.9	70° - 110°F (20° - 45°C)
065B8869LF	¾”	1.9	85° - 120°F (30° - 49°C)
065B8870LF	¾”	1.9	95° - 140°F (35° - 60°C)
065B8871LF	¾”	1.9	85° - 160°F (30° - 70°C)
31622111LF	1"	4.1	85° - 120°F (29° - 49°C)
31622011LF	1"	4.1	95° - 140°F (35° - 60°C)

Solder & CPVC Connections

Solder & CPVC Valve Body

Code No.	Cv	Temperature Range
065B8877LF	1.9	85° - 120°F (30° - 49°C)
065B8878LF	1.9	95° - 140°F (35° - 60°C)
065B8872LF (FOR CLOSED LOOP ONLY)	1.9	85° - 160°F (30° - 70°C)

Required Tailpiece Kit

Code No.	Size/Description
065B8901	½" solder tailpieces
065B8892	¾" solder tailpieces
065B8898	¾" CPVC

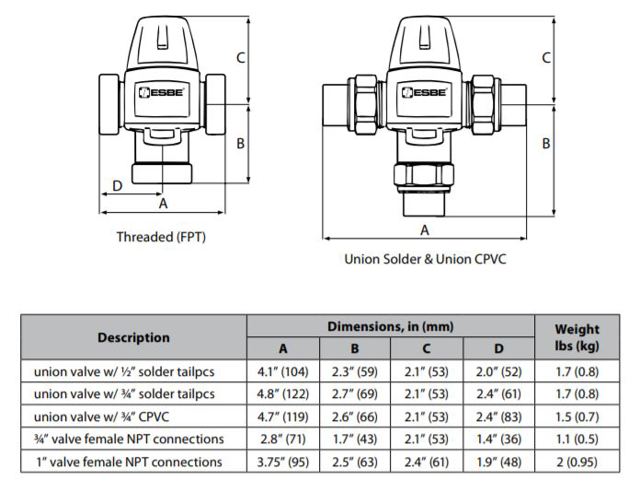

View Dimensions

VTA570

The 3-way ESBE VTA570 can be utilized in a mixing or diverting application for hydronic closed looped systems (not for potable water). Typically, this thermostatic control is used as a non-electric alternative for a 2-pipe changeover diverting application.

VTA570 thermostatic valve

Union/Solder Connections

VTA570 Valve Body

Code No.	Connection Size	Cv	Temperature Range
31700100	¾"	5.2	50° - 86°F (10° - 30°C)
31700200	¾"	5.2	65° - 105°F (20° - 43°C)

Required Tailpiece Kit

Code No.	Connection Type
065B8892	Union x (¾" F.) solder

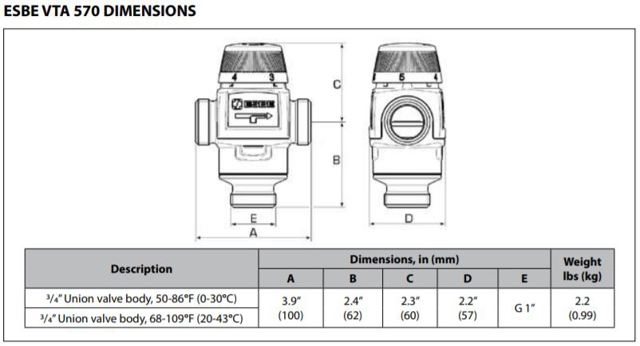

View Dimensions

View TMV Brochure & Datasheet

Low maintenance, easy-to-install thermostatic mixing valves (TMVs) are designed to protect against accidental scalding, & increase amounts of available hot water.

View

Documents

Documents
Type	Name	Language	Updated	Download	File type

Case studies

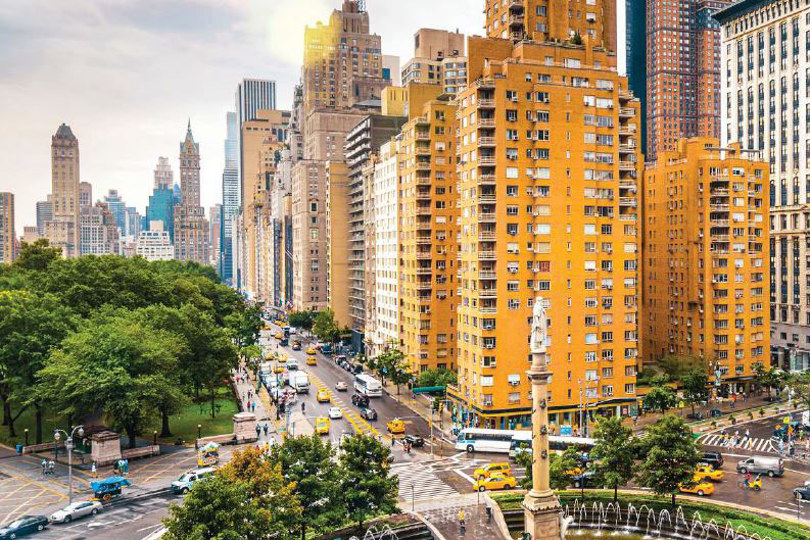

See how VTA570 help offices in NYC achieve year round comfort

View case study
