Need compact power conversion?
iC7-Hybrid is optimized for all power conversion applications and has an unrivaled power density with new filter technology.
Read the brochure

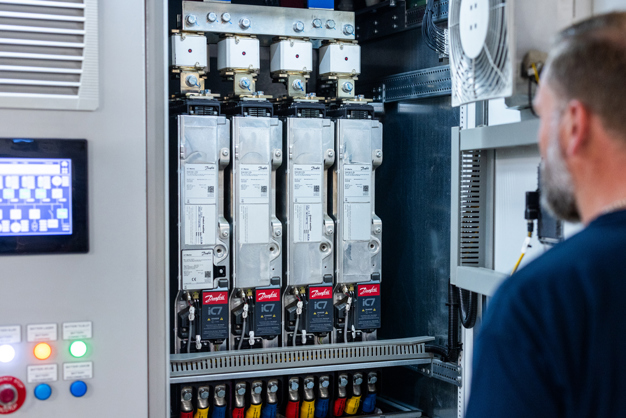

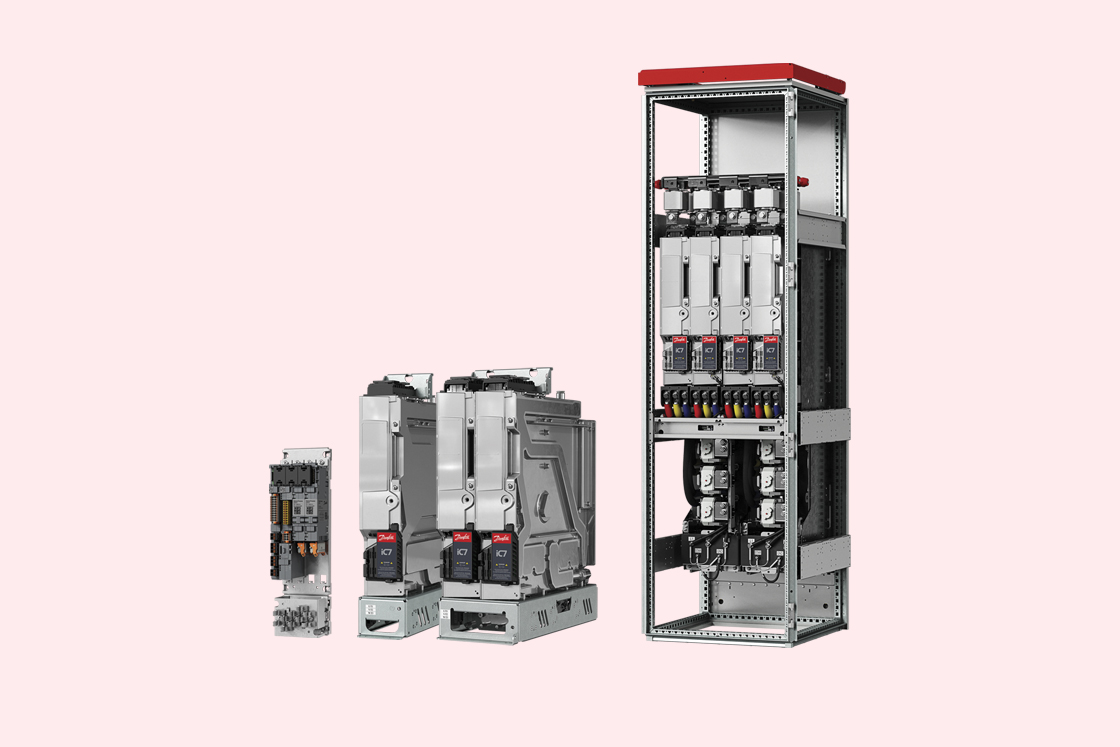

Superior power conversion hardware
Robust and ultra-compact power converters for system integration. Filters are contained in the pre-wired integration unit. Highly expandable option concept.
High power density reducing installation footprint to 50% of alternative modules while still giving the same power output. Now you can reduce the size of your electrical room and lower your cooling needs too.
Intelligent power conversion for your industry
Using the world’s smallest power converter, you can take your vessel efficiency to the next level, and leverage synergies with iC7-Marine motor drives. Meet emission targets while reducing operational cost with the help of highly efficient hybrid or fully-electric systems. Incorporate energy storage and charging systems for your AC or DC distribution with iC7-Hybrid power converters. Or enjoy the grid forming and permanent magnet generator control capabilities of iC7-Hybrid in highly efficient shaft generator and DC distribution applications.

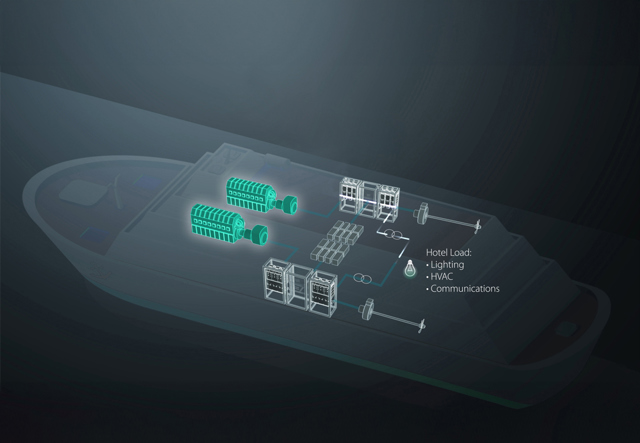

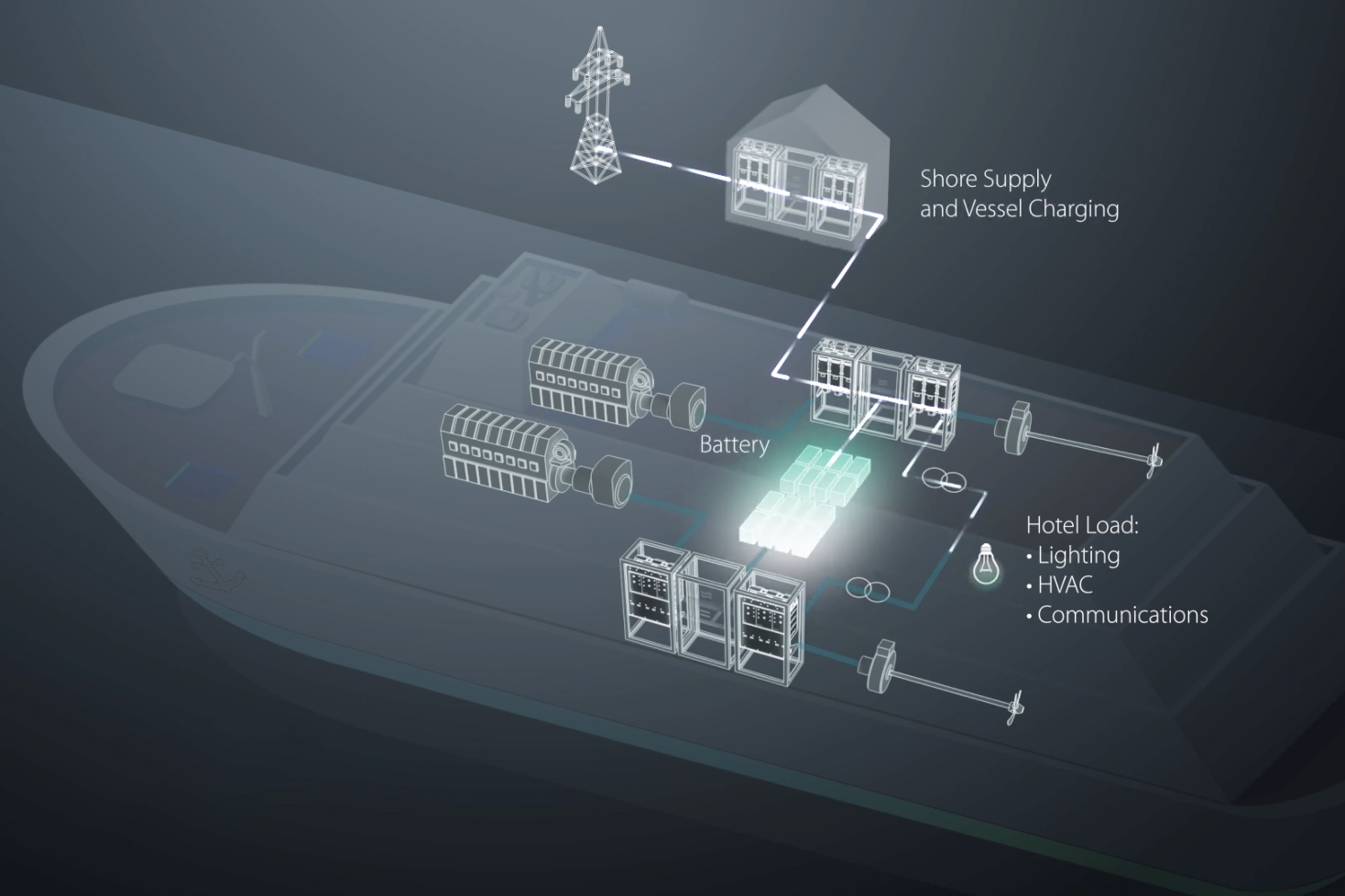

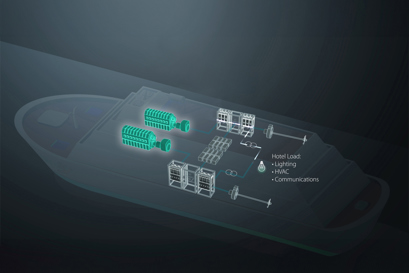

Need to comply with IMO limits and enjoy clean city air? Whether you need AC or DC power, let the iC7-Hybrid optimize the footprint of your shore supply system. Future-proof your shore supply with built-in grid compliance and grid support capability. Parallel with DC/DC converters and energy storage to downsize grid connection for high efficiency single conversion stage DC-charging applications. iC7-Hybrid gives you state-of-the-art grid forming control for all your AC shore supply applications.

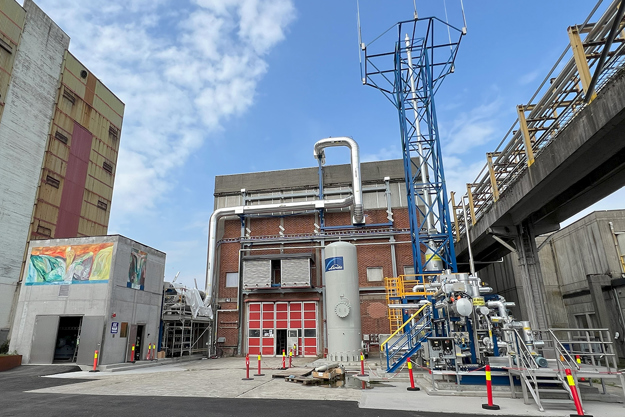

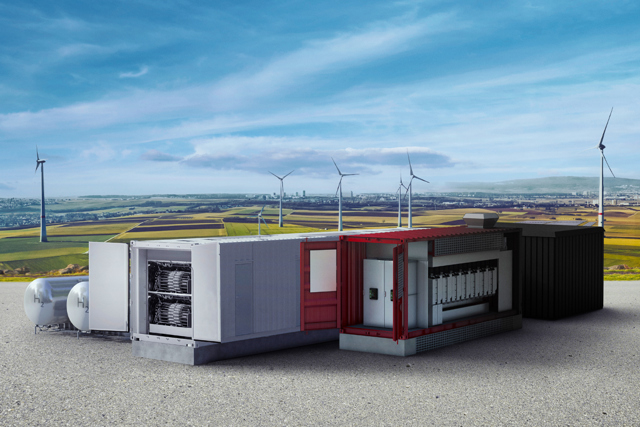

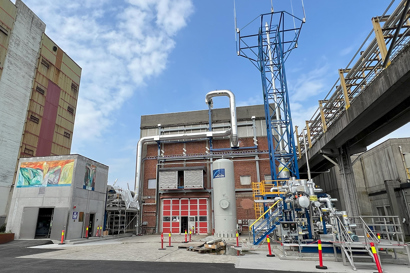

Minimize the levelized cost of hydrogen with a Danfoss Drives power converter, and optimize electrolyzer production using highly efficient, high-quality DC power. The iC7-Hybrid is extremely power dense and comes with built-in grid compliance to suit your location, no matter what the geography. You also get intelligent adaptable grid support to ensure a rock-solid stable supply. Cleverly integrated filters mean you can maintain power quality without having to invest more and maintain additional equipment.

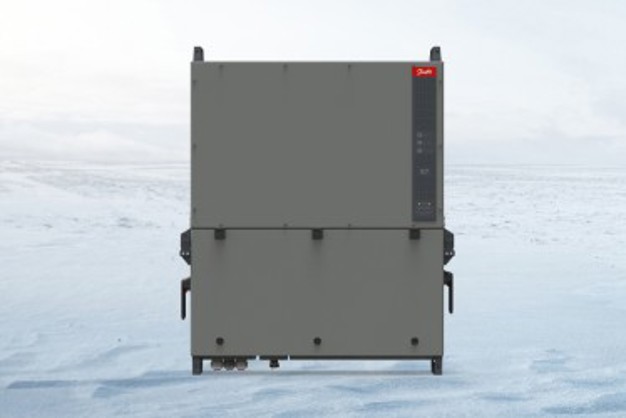

Experience enhanced flexibility and efficiency with the iC7-Hybrid String PCS for your battery energy storage systems. This outdoor-ready (IP65) solution utilizes string topology, allowing independent battery charging and discharging, and the combined use of new and old batteries. The result is maximized capacity, reduced downtime, and superior serviceability. As a fully integrated system with built-in protection, it simplifies installation by eliminating the need for extra outdoor cabinets
Join the energy transition

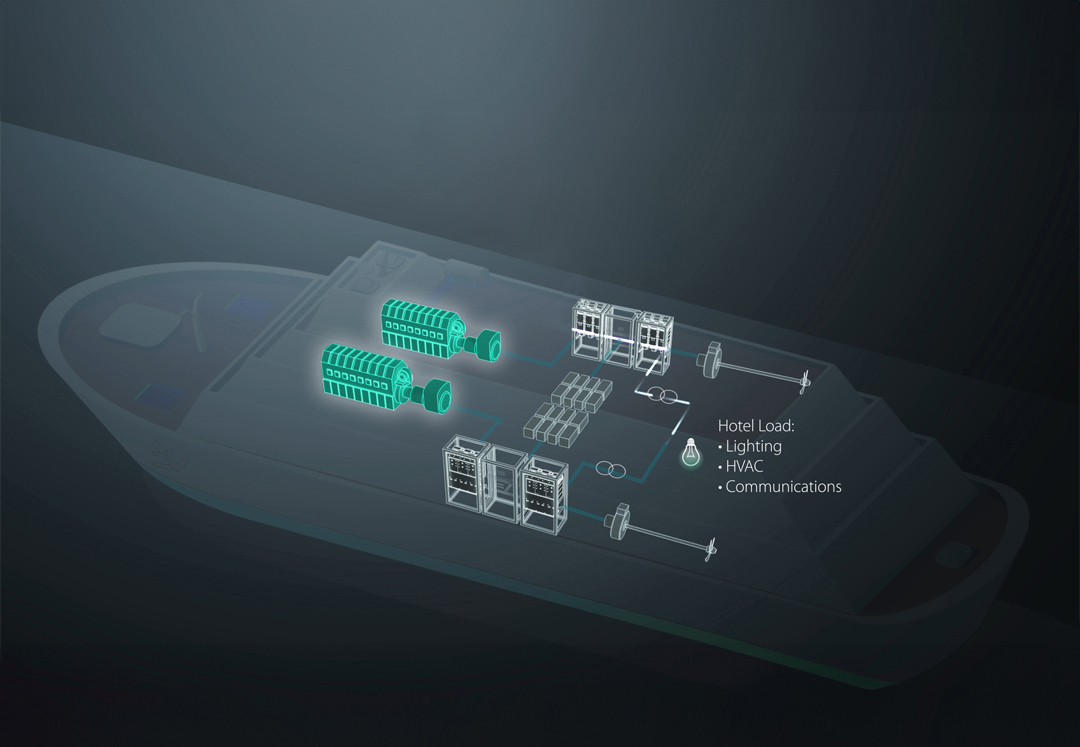

iC7-Hybrid ensures power quality and availability when supply reliability is vital. Keep power systems running even when other power generation fails, with blackout prevention. Restore important loads with black start feature. The iC7-Hybrid Grid Converter application offers unmatched flexibility in smart load sharing and streamlined power management for a wide range of control objectives: whether for active or reactive power, AC or DC voltage, or DC power for electrolyzer applications. This capability empowers you to win greater freedom in grid connectivity — or create your own grid.
Enjoy stable and controllable DC power while also reducing your fuel consumption, by switching to variable speed power generation. iC7-Hybrid is compatible with any generator type or brand you choose, even high-efficiency permanent magnet generators. The dedicated Generator software application gives you best-in-class sensorless control to reduce cost and improve reliability. And with versatile control modes and generator protection features, your system design becomes simpler. Dedicated functionality for auxiliary and shaft generators significantly reduces your time to market. Conveniently, you can use the same hardware for shore connection (AFE) and motor or generator control.
With iC7-Hybrid String PCS, enjoy broad grid code compliance for versatile grid forming and grid following capability, as well as black start and synthetic inertia. Especially well suited to land-based outdoor applications.

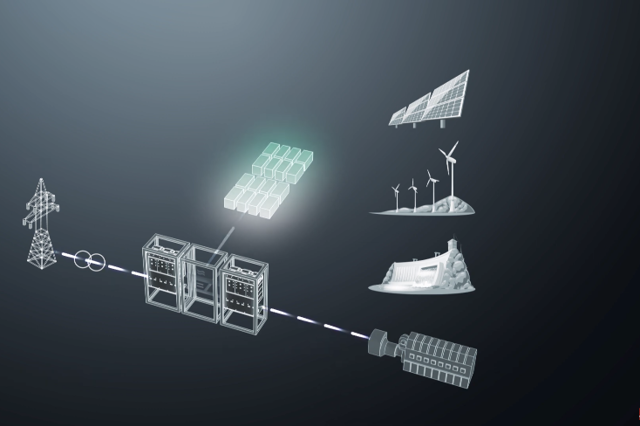

With iC7-Hybrid DC/DC Converter application, grants you the freedom to connect a wide voltage range of energy storage to a stable DC-bus. From megawatt scale batteries for vessel electrification, to machine integrated super capacitors, easily implement peak shaving and time shifting using fast primary control.
Features and benefits
Intelligent security ready for Industrial IoT
Market-leading hardware-based protection prevents unauthorized access. Crypto chip ensures end-to-end encrypted data transfer.
Predict system behavior, de-risk, and go to market faster.
Access digital twin simulation models which are always up to date.
Expose projects to less risk and make commissioning easier.
-
Fit-for-purpose power conversion improves competitiveness and reduces engineering effort
-
Fast control loops meet the modern low-inertia network requirements
-
Highly compact design minimizes weight, space, and cooling costs
-
Reliable in difficult installation and operating conditions
-
True digital twin simulation models are always up-to-date and accurate, ready to use in your system simulation
-
Access and transfer data securely via cloud. Tamper-proof hardware protects your intellectual property
-
Modular concept scales to any application, with power range up to 6.8 MVA and beyond
-
One common iC7 platform serves both power conversion and AC drives in your applications, for shorter time to market and lower lifecycle costs
-
Integrated functional safety with STO and SS1-t SIL3, PL e as standard for diverse uses of Generator application
-
Enable multiple fieldbus protocols through the same Ethernet port
-
Keep downtime to a minimum thanks to power conversion stack redundancy
-
Digital interface is easy to use

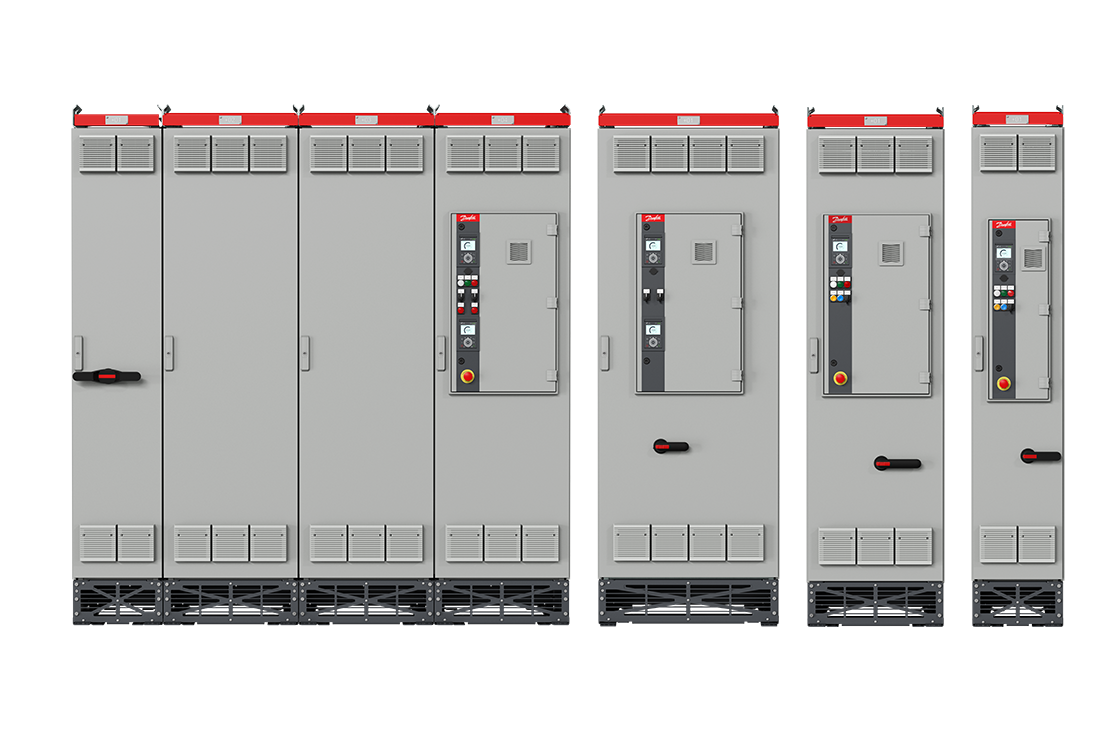

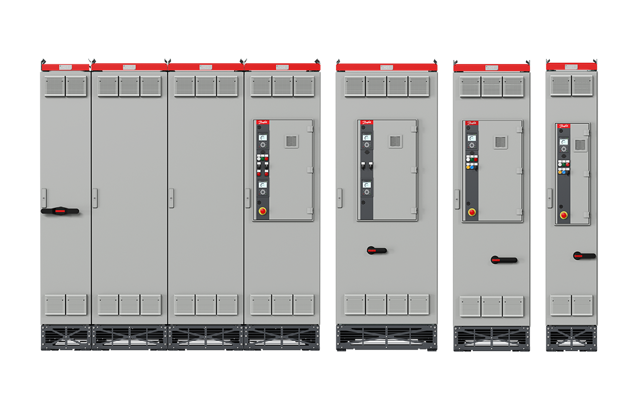

iC7-Hybrid – Engineered to order
Engineered-to-order (ETO) enclosed power conversion solutions give you a competitive edge on your competitors in both offshore and land-based power conversion applications. These ETO solutions can flexibly include Grid Converter, DC/DC Converter and Generator applications to match operational needs precisely. Whether it's for shaft generator, energy storage, or grid forming applications, or even more.
ETO solutions speed up your project delivery, while elevating performance and efficiency, and reducing commissioning effort. No matter the solution, our engineering expertise enables us to deliver solutions that precisely align with your operational needs.
You get project engineering solutions comprising pre-designed sections that reduce technical risk and cost for fully-electric and hybrid systems. Interested? Please contact your local sales office for further information.

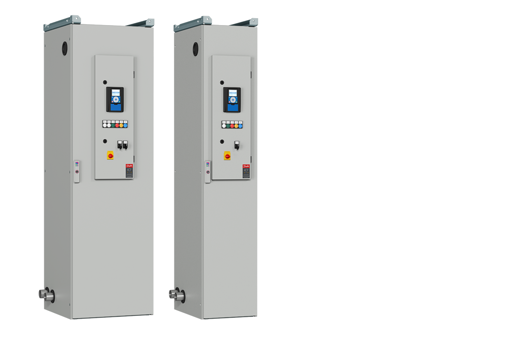

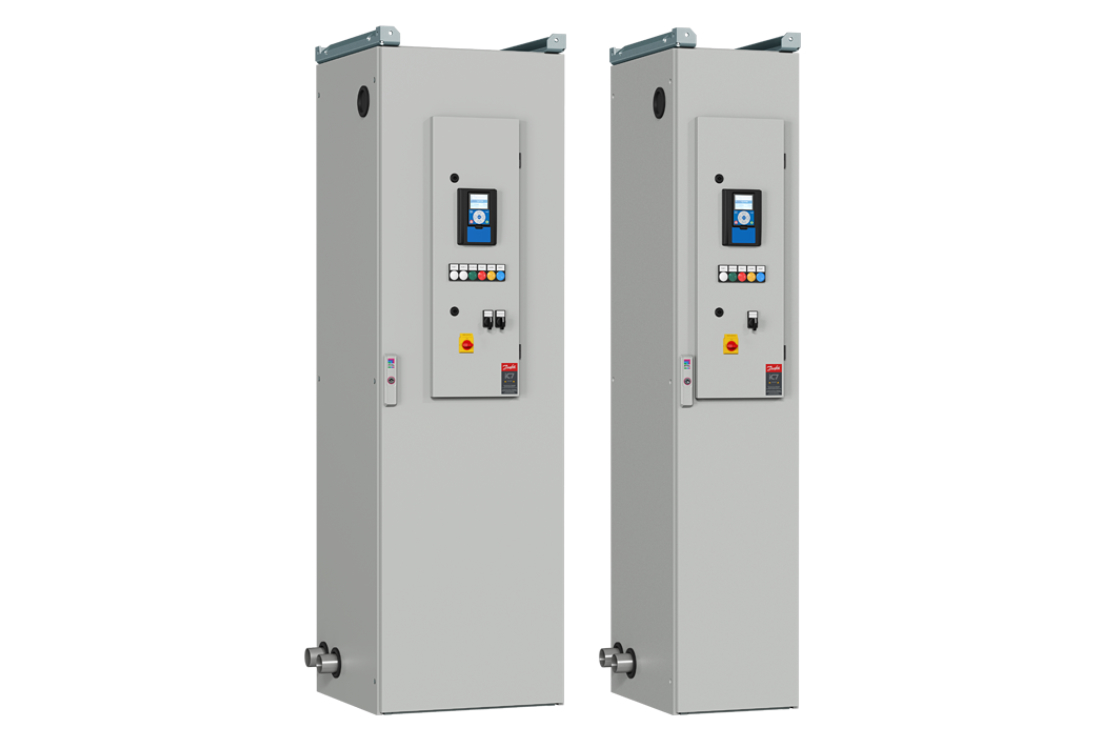

Highly compact cooling unit
The iC7 series liquid-cooled system modules empower you to pack a lot of power into a small space, to optimize your systems – and give you new application opportunities. At the heart of this groundbreaking technology is the cooling unit. The cooling unit is service-friendly with easy access to the pump and pump shut-off valves.
Documents
Drawings
Software

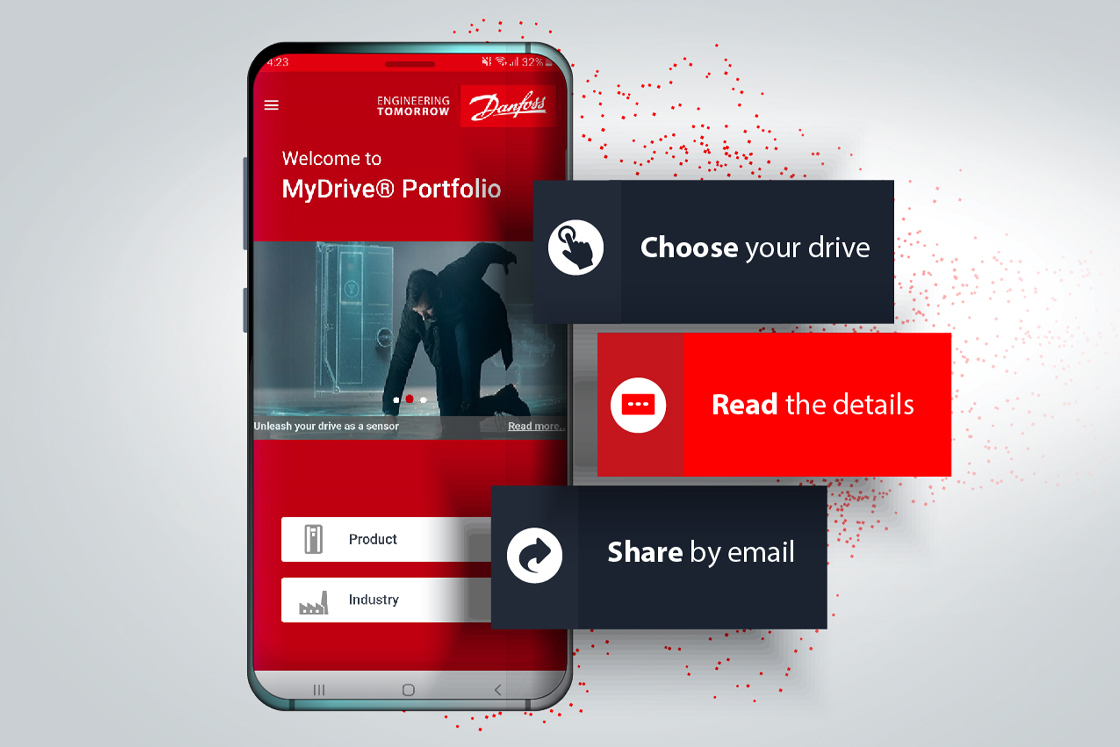

Tools and apps
