Manual balancing valves

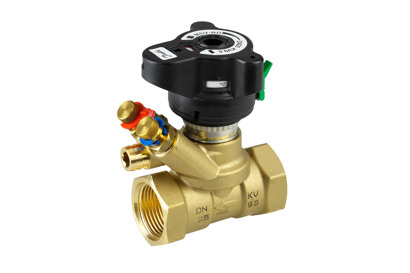

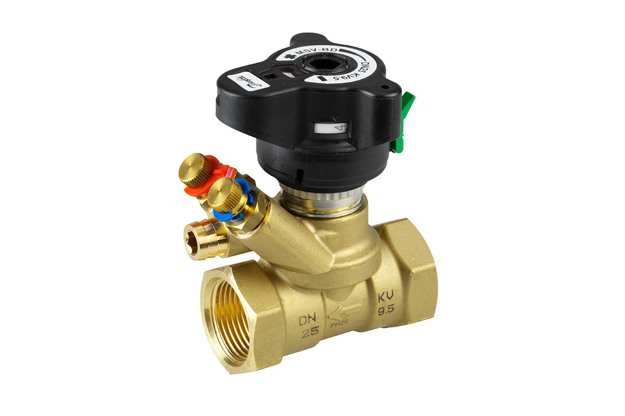

Danfoss Manual balancing valve MSV-BD

Heating and cooling systems designed with a constant flow principle circulate large amounts of water. To do that as efficiently as possible, it is important to ensure that the design flows in the different parts of the system are correct. Manual balancing valves are the best option in these types of systems. Once installed, they can be commissioned and set to the design flow without the risk that flows will change due to partial load conditions. For a proper hydronic balance in the system, a series of manual balancing valves are installed, varying in size according to the required flow in specific parts of the system.

Danfoss offers a broad range of manual balancing valves, shut-off valves, measuring tools and related accessories.

Flanged valves type MSV-F2 in DN 15 – 400
Threaded valves type LENO^TM MSV-BD, MSV-B & MSV-O in DN 15 – 50
Threaded shut-off valves type LENO^TM MSV-S in DN 15 – 50
Measuring tools type PFM 5001 & PFM 100

Features and benefits

Broad product range

With valves in sizes from DN 15 up to DN 400, mounting options with internal thread, external thread or flanges and availability of measuring tools and accessories, there is always a Danfoss manual balancing valve that corresponds to your requirements.
Compact construction

All Danfoss balancing valves are designed to take up minimum space and be easy to install. The removable hand wheel on LENOTM MSV valves is a best practice example of that.

Product range

Documents

Documents
Type	Name	Language	Updated	Download	File type

Software

Danfoss SET 365 software

Our advanced Danfoss SET 365 3D design software will help you to design and calculate HVAC systems with Danfoss products. A 1-year subscription is FREE available for students, designers and other interested professionals.

Danfoss SET 365 software

Learning

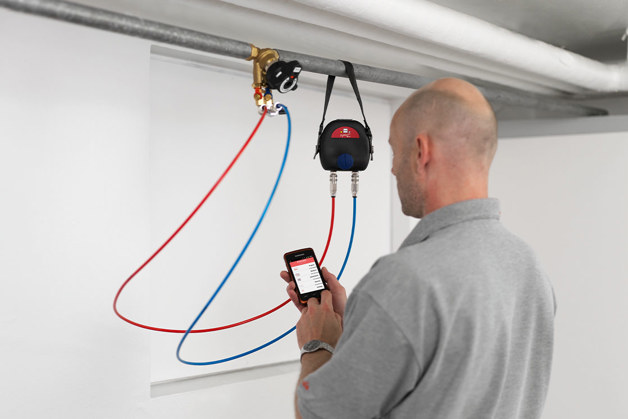

Webinar Proportional balancing

If you want to learn more about commissioning of a HVAC system with Manual Balancing Valves, you should have a look at our on-demand webinar recording ‘Learn how to do proportional balancing and understand the process’. Our experts Jan Skomina and Stanley de Vries will guide you through the process step-by-step.

Watch the recording here

Tools and apps

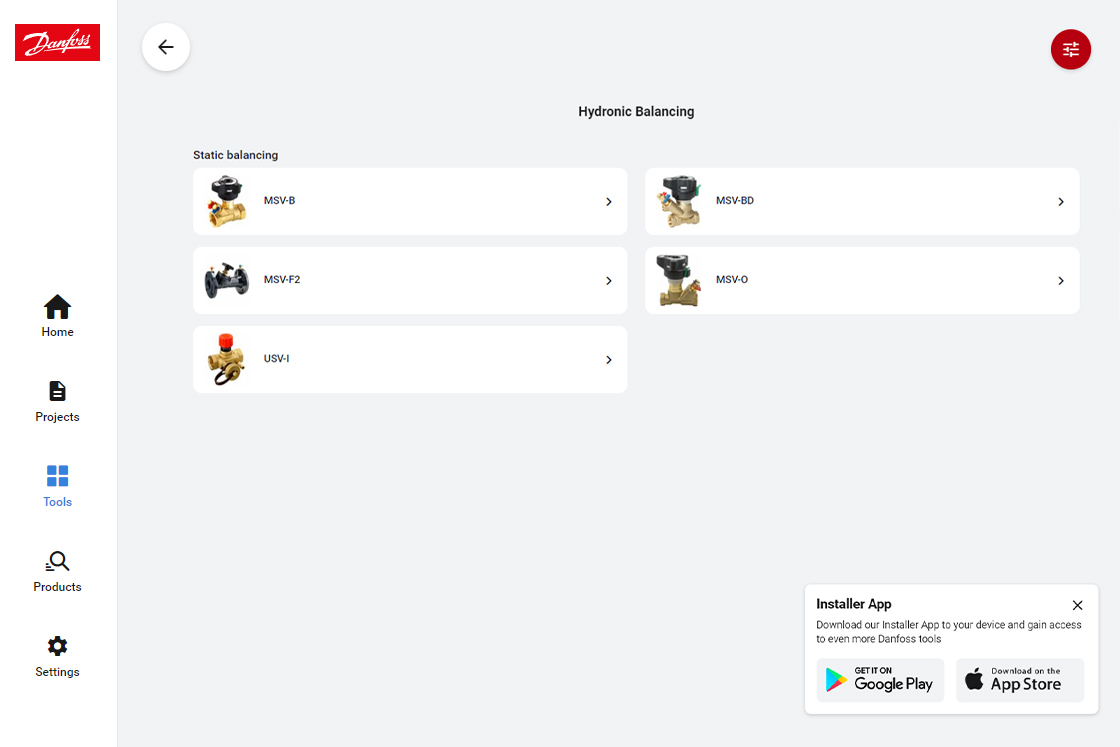

Hydronic balancing tool for static balancing valves Software tools

Go to tool

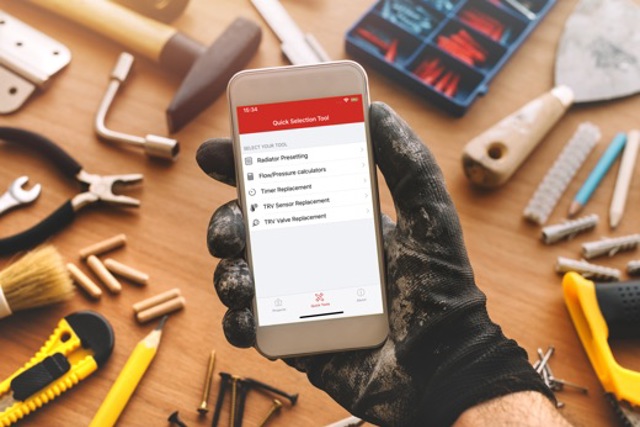

Verify flow using Installer App

The Installer App allows you to easily verify the flow in different LENO™ valves. In the Quick tools section, choose the Hydronic balancing tool. Then select the valve and the desired dimension and get the answer immediately.

Download Installer App for iOS Download Installer App for Android Read more about the Installer App

3D models and drawings

BIM library for MEP designs

Get your 3D BIM objects and start design constant flow HVAC solutions.

Tender texts

MSV-F2 – Manual Balancing Valves

Product is a manual presetting valve for balancing the flow in heating and cooling installations.

Pre-setting values visible on a digital scale
Position indicator and stroke limiter
Lockable presetting
Non-rising hand wheel
Shut-off function
Leakage rate A according to ISO 5208
Pre-mounted test plugs
The valve should have a measuring accuracy on 8% at 25% pf of max. setting according to BS7350
Pressure class: PN 16 or PN 25
Temperature range: PN 16: Flow temperature: –10 °C … 130 °C & PN 25: Flow temperature: –10 °C … 150 °C
DP max 2.5 bar
Connection size: DN 15-400
Connection type: Flange connections
