VLT® Soft Starter MCD 600

Superior soft start performance for fixed-speed applications

The VLT® Soft Starter MCD 600 combines the latest in advanced controls and protections with an increased level of intelligence for superior performance in fixed-speed applications.

Need support? Try MyDrive® Assistant now!

The MCD 600 is more flexible than ever to install, thanks to a wide variety of Ethernet and serial-based communication option cards, application-dedicated smart cards and support for eight languages.

An integrated bypass ensures both extremely high efficiency and harmonic-free operation at full speed, reducing energy consumed and required cooling capacity. Ease of use is in focus with features such as the pump-clean function, PowerThrough operation, and calendar or run time-based scheduling. More extensive motor and starter protections ensure more uptime.

Supply voltages and power range

Mains voltage range

3 x 200-525 VAC (T5)
3 x 380-690 VAC (T7)

Current range and enclosure

IP20: 20-129 A (nominal)
IP00: 144-579 A (nominal)

Features and benefits

Inbuilt impeller cleaning assistance with Pump clean functionality
Easy application analysis with up to 348 events logged, as well as QR code scan for serial number and event data
Easy data access and reduced startup and upgrade time thanks to integrated USB port
More reliability, more uptime with expanded motor and controller protections
Flexibility for low speed applications, with Jog function
Improved uptime with PowerThrough function which uses 2-phase control if one phase is damaged by shorted SCR
Easy connectivity for the soft starter to Ethernet-based networks, such as PROFINET and EtherNet/IP
Programming is quick and easy thanks to three menu systems (Quick Menu, Application Setup and Main Menu), a four-line graphical display and a logic keypad
The best starting and stopping profile for the application is chosen using Adaptive Acceleration Control (AAC)
Installation costs are lower and there is less stress on the motor thanks to DC injection braking distributed evenly over three phases
Save space and reduce installation costs, thanks to the internal bypass contactors

Technical documentation

Technical documentation for VLT® Soft Starter MCD 600.

Marine type approvals

Marine type approvals for VLT® and VACON® AC drives

Product certificates

Product certificates for VLT® Soft Starter MCD 600.

Options

View all VLT® options.

Drawings

All drawings for VLT® Soft Starter MCD 600.

Software

Find all software tools in Danfoss MyDrive® Suite.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	Mining and mineral processing	English	Multiple	11 Nov, 2021	44.2 MB	.pdf
Operating guide	VLT® Soft Starter MCD 600	English	Multiple	14 Dec, 2021	9.9 MB	.pdf

3D models and drawings

3D models and drawings
Type	Name	Language	Updated	Download	File type

Software

Software
Type	Software Characteristic	Name	Version	Language	Released	Status	Download	File type
Software tools		Danfoss WinStart for MCD 600	4.2	English	15 Dec, 2021	Released	6.5 MB	.zip
System software	Fieldbus configuration file	VLT® MCD600/500/200 EtherNet/IP EDS	01	English	15 May, 2018	Released	6.5 KB	.zip
Software tools		VLT® Motion Control Tool MCT10	6.20	English	04 May, 2026	Released	1.3 GB	.zip

Case studies

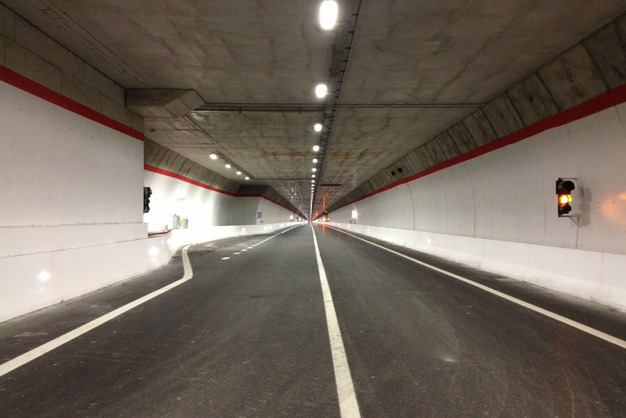

Safe and reliable ventilation in Sellero tunnel

VLT® HVAC Drives control fan speed to keep the tunnel constantly well ventilated and ensure clean air in an escape tunnel in the event of fire.

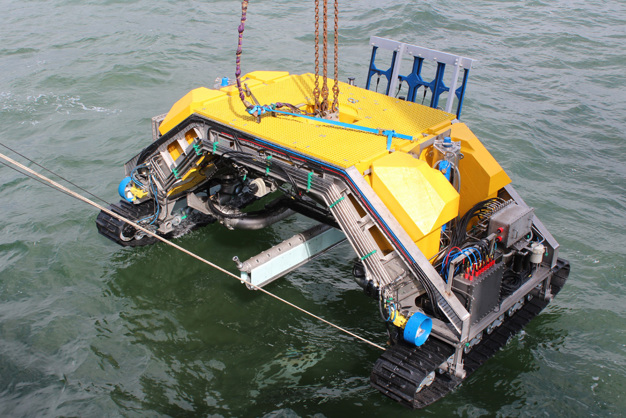

Accurate control of CT Offshore’s ROV trencher
