VACON® NXP Liquid Cooled

Product store

Powerful performance in extreme conditions

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.

Need support? Try MyDrive® Assistant now!
iC7-Marine: the drive to power your future ambition

You trust VACON® drives. Heard of iC7-Marine?

Like you, we've relied on VACON® drives forever. That shared legacy is why we built the iC7-Marine: the drive to power your future ambition.

Explore iC7-Marine

Liquid-cooled AC drives can be used in many combinations, from a single dedicated frequency converter to large-scale common DC bus systems. Packed with features, these fully standardized drives maximize the utilization of space while minimizing overall lifecycle costs.

As a high degree of protection (IP54 or higher) can easily be achieved with these drives, they can be installed almost anywhere in a plant or on a vessel. This eliminates the load on air-conditioning systems in electrical rooms reducing costs and installation time, and makes them ideal for retrofitting.

Servicing is fast and easy. Features such as safe torque off (STO) and safe stop 1 (SS1) improve safety, and conformal coated circuit boards enhance reliability.

NXA, NXN, NXB and NXI configurations
Active Front-end (NXA), Non-regenerative Front-end (NXN), Brake Chopper (NXB) and Inverter (NXI) configurations are available.
For more information about these configurations please refer to the VACON® NXP Common DC Bus selection guide.





Power range

  • 3 x 400-500 V...132-4100 kW
  • 3 x 525-690 V...110-5300 kW

Features and benefits

  • Floor space requirements and infrastructure needs are reduced as the compact design needs no air ducts

  • Investment savings as no large air-conditioning systems are needed due to minimal dissipation of heat loss to the air

  • Fulfills all relevant international standards and global requirements including marine, safety, EMC and harmonics approvals

  • Virtually silent operation as large cooling fans are not needed

Technical documentation for VACON® NXP Liquid Cooled
Technical documentation

Technical documentation for VACON® NXP Liquid Cooled.

Marine type approvals for VLT® and VACON® AC drives
Marine type approvals

Marine type approvals for VLT® and VACON® AC drives

Product certificates for VACON® NXP Liquid Cooled
Product certificates

Product certificates for VACON® NXP Liquid Cooled.

Options

View all VACON® options.

All drawings for VACON® NXP Liquid Cooled
Drawings

All drawings for VACON® NXP Liquid Cooled.

Find all software tools in Danfoss MyDrive® Suite
Software

Find all software tools in Danfoss MyDrive® Suite.

Documents

iC7-Marine: Where your ambition has no limits

Space is precious - use it well. iC7-Marine modules are ultra-compact, occupying 40% less space in the e-room for a wealth of new opportunities.

See iC7-Marine benefits
Type Name Language Valid for Updated Download File type
Brochure Chemicals English Multiple 21 Nov, 2021 10.5 MB .pdf
Application guide Encoder-less Safety using DOLD Module English Multiple 14 Apr, 2017 5.9 MB .pdf
Case story Maximum Power for excavating uphill tunnels English Multiple 24 Aug, 2023 6.9 MB .pdf
Brochure Mining and mineral processing English Multiple 11 Nov, 2021 44.2 MB .pdf
Application guide VACON Condition-based Monitoring English Multiple 23 Feb, 2023 1.2 MB .pdf
Fact sheet VACON NXP drive anti-sway functionality English Multiple 27 Feb, 2023 569.0 KB .pdf
Operating guide VACON-NX-Line-Voltage-Measurement-OG English Multiple 27 Mar, 2023 13.0 MB .pdf
Design guide VACON® Hybridization Design Guide English Multiple 14 Jan, 2017 3.8 MB .pdf
Application guide VACON® NX All in One Application Guide English Multiple 03 Jun, 2025 7.5 MB .pdf
Application guide VACON® NX BCU ABFIFF01V126 Appl. Man English Multiple 28 Nov, 2023 745.3 KB .pdf
Operating guide VACON® NX Liquid Cooled Drives User Manual English Multiple 10 Dec, 2025 22.3 MB .pdf
Application guide VACON® NX Marine APFIFF09V242 Appl. Man English Multiple 28 Nov, 2023 3.3 MB .pdf
Application guide VACON® NX Sys Interf. APFIFF10V244 ApplM English Multiple 14 Apr, 2019 808.0 KB .pdf
Operating guide VACON® NXP Advanced Safety Options English Multiple 12 Sept, 2024 14.1 MB .pdf
Application guide VACON® NXP CraneContr APFIFF20v099 ApplM English Multiple 14 Jan, 2021 2.7 MB .pdf
Application guide VACON® NXP Funct. Safety App.G for Lifts English Multiple 14 Nov, 2019 1.4 MB .pdf
Application guide VACON® NXP HighSpeed APFIFF41V323 Manual English Multiple 14 Jan, 2021 2.1 MB .pdf
Application guide VACON® NXP LineSynchII APFIFF44V120 AppM English Multiple 14 Jun, 2021 1.9 MB .pdf
Application guide VACON® NXP Shaft Sync APFIFF11 Appl Man English Multiple 14 Dec, 2015 1.1 MB .pdf
Application guide VACON® NXP SIA II APFIFF40V111 ApplM English Multiple 28 Nov, 2023 3.0 MB .pdf
Application guide VACON® NXS-P FireM.PID ASFIFF11V210 AppM English Multiple 14 Dec, 2015 229.5 KB .pdf
White paper Why supply land-based power English Multiple 28 Feb, 2023 10.6 MB .pdf

3D models and drawings

3D models and drawings
Type Name Language Updated Download File type
Dimensional drawing MCAD VACON HXL 300 P PI diagram 01 Jun, 2026 100.2 KB .dwg
Eplan drawing NXP_0170 6 A0T0SWF 02 Jun, 2026 448.6 KB .zip
Eplan drawing NXP_0208 6 A0T0SWF 02 Jun, 2026 448.7 KB .zip

Software

Software
Type Software Characteristic Name Version Language Released Status Download File type
Software tools SISTEMA Library for Danfoss Drives 2.0 English 14 Jul, 2025 Released 842.2 KB .zip
Application software VACON NXP Active Front End I 153 English 12 May, 2022 Released 3.7 MB .zip
System software AC drive firmware VACON NXP Firmware 211 Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese 25 Aug, 2025 Released 4.3 MB .zip
System software Option and fieldbus firmware VACON® Advanced Safety Option Firmware 004 English 15 Dec, 2019 Released 3.1 MB .zip
Software tools VACON® NCDrive 2.0.42 English 07 Mar, 2022 Released 5.0 MB .zip
Software tools VACON® NCLoad 1.0.34 English 03 Dec, 2020 Released 3.6 MB .zip
System software Fieldbus configuration file VACON® NX OPTC3/C5 PROFIBUS GSD 01 English 10 Jan, 2016 Released 748.0 B .zip
System software Fieldbus configuration file VACON® NX OPTC4 LonWorks XIF 01 English 10 Jan, 2016 Released 1.3 KB .zip
System software Fieldbus configuration file VACON® NX OPTC6 CANopen EDS 01 English 26 Feb, 2018 Released 2.7 KB .zip
System software Fieldbus configuration file VACON® NX OPTC7 DeviceNet EDS 01 English 31 Dec, 2011 Released 3.5 KB .zip
System software Fieldbus configuration file VACON® NX OPTCP PROFINET GSDML 01 English 18 Feb, 2015 Released 7.4 KB .zip
Application software Drive software VACON® NXP Active Front End II 077 English 19 Nov, 2025 Released 2.5 MB .zip
Application software VACON® NXP Advanced Application 242 English 04 Jul, 2023 Released 3.0 MB .zip
Application software VACON® NXP Brake Chopper Unit 126 English 02 Jul, 2023 Released 1.2 MB .zip
Application software Drive software VACON® NXP Crane Application 106 English 19 Nov, 2025 Released 5.8 MB .zip
Application software VACON® NXP DC/DC Converter Application 114 English 28 Jan, 2024 Released 1.7 MB .zip
Application software Drive software VACON® NXP Generator Application 141 English 05 Feb, 2026 Released 3.3 MB .zip
Application software Drive software VACON® NXP Grid Converter + GGC 178 English 19 Nov, 2025 Released 5.5 MB .zip
Application software VACON® NXP Grid Converter + GGC (UL508a) 103 English 30 Jul, 2020 Released 5.6 MB .zip
Application software Drive software VACON® NXP Lift Application 229 English 19 Nov, 2025 Released 780.1 KB .zip
Application software VACON® NXP Line Sync II Application 120 English 03 Jun, 2021 Released 2.6 MB .zip
Application software Drive software VACON® NXP Marine Application 248 English 30 Nov, 2025 Released 6.2 MB .zip
Application software Drive software VACON® NXP Power Generation Application 041 English 19 Nov, 2025 Released 956.7 KB .zip
Application software VACON® NXP Shaft Sync Application 115 English 22 Sept, 2010 Released 3.1 MB .zip
Application software VACON® NXP System Interface Application 244 English 23 Apr, 2019 Released 1.9 MB .zip
Application software Drive software VACON® NXP System Interface II Application 114 English 13 Jan, 2026 Released 6.2 MB .zip
Application software Drive software VACON® NXP uGrid Converter Application 196 English 19 Nov, 2025 Released 3.4 MB .zip
System software Option and fieldbus firmware VACON® OPT-C2 Modbus RTU / N2 Firmware 023 English 11 Sept, 2012 Released 62.8 KB .zip
System software Option and fieldbus firmware VACON® OPT-C3/C5 PROFIBUS DP Firmware 018 English 06 Oct, 2015 Released 57.6 KB .zip
System software Option and fieldbus firmware VACON® OPT-C4 LonWorks Firmware 025 English 13 Jun, 2017 Released 66.1 KB .zip
System software Option and fieldbus firmware VACON® OPT-C6 CANopen Firmware 026 English 20 Aug, 2017 Released 74.5 KB .zip
System software Option and fieldbus firmware VACON® OPT-C7 DeviceNet Firmware 012 English 17 Sept, 2012 Released 81.8 KB .zip
System software Option and fieldbus firmware VACON® OPT-CG S2 Protocol Firmware 010 English 18 Sept, 2012 Released 46.3 KB .zip
System software Option and fieldbus firmware VACON® OPT-CI Modbus TCP/IP Firmware 020 English 12 Apr, 2021 Released 153.1 KB .zip
System software Option and fieldbus firmware VACON® OPT-CJ BACnet MS/TP Firmware 013 English 18 Sept, 2012 Released 64.8 KB .zip
System software Option and fieldbus firmware VACON® OPT-CP PROFINET IO Firmware 014 English 12 Apr, 2021 Released 511.6 KB .zip
System software Option and fieldbus firmware VACON® OPT-CQ Ethernet/IP Firmware 008 English 12 Apr, 2021 Released 188.3 KB .zip
System software Option and fieldbus firmware VACON® OPT-E6 CANopen Firmware 015 English 16 Sept, 2025 Released 2.6 MB .zip
System software Option and fieldbus firmware VACON® OPT-E9 DualPort Ethernet Firmware 014 English 16 Sept, 2025 Released 16.3 MB .zip
System software Option and fieldbus firmware VACON® OPT-EC EtherCAT Firmware 005 English 11 Aug, 2022 Released 2.9 MB .zip
System software Option and fieldbus firmware VACON® OPTBB EnDat Firmware 009 English 24 Nov, 2025 Released 62.6 KB .zip
System software Fieldbus configuration file VACON® OPTBE EnDat/SSI/BiSS C Firmware 010 English 27 Mar, 2019 Released 36.4 KB .zip
System software Fieldbus configuration file VACON® OPTCQ EtherNet/IP EDS 01 English 07 Jan, 2015 Released 13.2 KB .zip
System software Firmware VACON® OPTE2/E8 RS485 MultiProtocol 004 English 16 Sept, 2025 Released 2.2 MB .zip
System software Fieldbus configuration file VACON® OPTE3/E5 PROFIBUS GSD 01 English 07 Jun, 2022 Released 13.4 KB .zip
System software Library VACON® OPTE3/E5 TIA Portal Library 014 English 07 Jul, 2020 Released 3.6 MB .zip
System software Fieldbus configuration file VACON® OPTE9 EtherNet/IP EDS 01 English 02 Sept, 2020 Released 72.1 KB .zip
System software Fieldbus configuration file VACON® OPTE9 PROFINET IO GSDML 01 English 02 Apr, 2020 Released 204.3 KB .zip
System software Fieldbus configuration file VACON® OPTE9 SIMATIC PDM EDD 01 English 15 Dec, 2019 Released 667.4 KB .zip
System software Library VACON® OPTE9-EA TIA Portal Library 01 English 15 Feb, 2018 Released 2.9 MB .zip
System software Library VACON® OPTE9/EA EtherNet/IP Add-on Instructions 01 English 15 Feb, 2018 Released 531.9 KB .zip
System software Option and fieldbus firmware VACON® OPTEA Advanced Dual Port Ethernet Firmware 012 English 21 May, 2026 Released 16.9 MB .zip
System software Configuration file VACON® OPTEA PROFINET IO GSDML 2.43 English 01 Dec, 2025 Released 242.5 KB .zip
System software Fieldbus configuration file VACON® OPTEA SIMATIC PDM EDD 01 English 12 Nov, 2018 Released 461.7 KB .zip
System software Fieldbus configuration file VACON® OPTEC EtherCAT ESI 01 English 19 Feb, 2020 Released 381.4 KB .zip
System software Library VACON® PROFISAFE TIA Portal Library 01 English 15 Feb, 2018 Released 2.4 MB .zip
Software tools VACON® Safe 1.0.4.0 English 24 Jan, 2021 Released 3.8 MB .zip

Related applications

Compressors, wind turbines, extruders, pumps, fans, conveyors, crushers, thrusters, and propulsion, test-bench, crane, winch and power-conversion systems.

Drives for movements
Drives for industrial crane and hoist movement

To optimize crane performance, Danfoss offers flexible control strategies combined with energy efficiency, operating within stringent safety requirements.
Drives for industrial pumps

By controlling industrial pumps with a Danfoss AC drive you can help optimize processes and significantly reduce energy and maintenance costs.

Drives for marine power conversion and generation
Drives for marine power conversion and generation

Draw upon expertise from Danfoss to optimize energy storage solutions on board vessels, and shore power supplies for quieter and cleaner harbours.
Drives for marine propulsion and thrusters

For more efficient operation and greater freedom in ship design, consider an electric-based main propulsion with engineering from Danfoss.

Drives for marine pumps and separators
Drives for marine pumps and separators

For reliable operation, reduced emissions, and long life of marine pumps and separators, draw upon engineering knowhow from Danfoss.

Drives for marine refrigeration compressors
Drives for marine refrigeration compressors

Variable speed control of screw, reciprocating and scroll compressors gives you typically 15% reduction in energy consumption, and higher COP at part loads.

Troubleshooting

Need answers fast? Ask MyDrive® Assistant for help with your drive

MyDrive® Assistant helps you to find information, answer common questions, or troubleshoot your motor drives and power converters.

Fuel your ambition with iC7-Marine

Propelling peak performance, iC7-Marine is the unique maritime-dedicated drive ready to future-proof your vessels.

Get the iC7-Marine details

Case studies

Massive grabber crane in control at Tata Steel IJmuiden
Massive grabber crane in control at Tata Steel IJmuiden

Liquid-cooled VACON® active front-end drives control Tata Steel grabber crane, and the reliability of these AC drives is vital.

Caledonian Maritime Assets Limited (CMAL)
38% fuel savings and emission reductions for CMAL ferries

CMAL ferries use 38% less fuel than conventional vessels and emissions are reduced by a similar amount.

Hybrid powertrain improves tugboat economy and maneuverability
Hybrid powertrain improves tugboat economy and maneuverability

The Telstar saves 20% on operating costs compared to traditional tugboats.

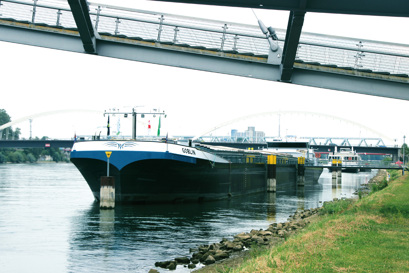

High efficiency in hybrid bulk carrier propulsion
