e-Wheel 100

Haptic electric steering with passive force-feedback

The electric steering input device e-Wheel 100 offers excellent steering controllability in Steer-by-wire fail safe applications. Allowing new cabin design flexibility, increased productivity and reduced operator fatigue.

It provides haptic passive force-feedback, which mimics the feel of conventional mechanically linked steering systems (such as hydro-static enforced feedback).

Features and benefits

OEMs

Direct ‘Plug & Play’ solution with PVED CLS steering and safety controller
Redundant CAN bus message, SIL 2 certified
Eliminates steering column and increases cabin design flexibility
Compact and robust design

Operators

Reduced operator fatigue - up to 57% reduced muscle activity and up to 6% increased productivity - when compared to conventional steering
Better visibility from cabin
Quick steering (variable steering ratio)
Smooth steering torque control

Documents

Documents
Type	Name	Language	Updated	Download	File type

Related products

OSPE

Electro-hydraulic steering valve used with mechanical steering wheel.
Certified - SIL 2 fail safe. Applications with quick steering and auto-
guidance (GPS). Interface to joystick and electric steering wheel.

EHi

Electro-hydraulic steering valve used for steer-by-wire systems. Certified - SIL 2 fail safe. Applications with quick steering, auto-guidance (GPS) and all wheel steering. Interface to joystick and electric steering wheel.

EHPS

Electro-hydraulic steering valve used for steer-by-wire systems
requiring high flow rates. Certified - SIL 2 fail safe. Applications
with quick steering and auto-guidance (GPS). Interface to joystick
and electric steering wheel.

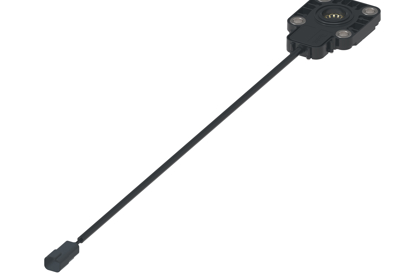

SASA sensors

Steering wheel sensor is used to detect the absolute position and speed of a mechanical steering wheel. Used in applications with variable steering ratio and closed loop set-ups where steering wheel position and vehicle steering angle have to match.
