EHi

Redefines steering flexibility

The Danfoss EHi steering valve shares platform with OSPE. It is compliant with all current legislations and safety standards, including the Machinery Directive. Additionally, it improves your application functionality, performance and accelerates your time to market with its scalable design and Steer-by-Wire technology. This complies to your specific needs and applications.

For agriculture, construction, road building, autonomous and material handling applications, the EHi is the next step toward smarter and safer steering.

Features and benefits

OEMs

Increased machine and cabin design flexibility with latest steer-by-wire technology
Integrated safety and steering controller with interface to auto guidance (GPS), joystick
and electric steering wheel
Proven technology that accelerates your time to market
Compliant with all current legislations and safety standards – SIL 2, AgPLd, Cat 3
Allows combination of orbitrol steering for Steer-by-wire steering
Integrated priority valve
It gives access to All-wheel steering solution
Electric or hydraulic disengage of electrohydraulic steering e.g. auto guidance (GPS)
Steering pressure up to 280 bar
Flow capacity up to 70 l/min

Operators

Superior steering performance and safety with precise handling and control under all conditions
Increased productivity with auto guidance (GPS) steering, variable steering ratio (quick steering) and all-wheel steering
Improved operator comfort with joystick and electric steering wheel
Reduced noise and heat in cabin

Documents

Documents
Type	Name	Language	Updated	Download	File type

Related products

OSPE

Electro-hydraulic steering valve used with mechanical steering wheel. Certified - SIL 2 fail safe. Applications with quick steering and auto-guidance (GPS). Interface to joystick and electric steering wheel.

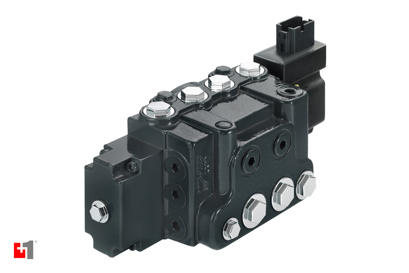

EHPS

Electro-hydraulic steering valve used for steer-by-wire systems requiring high flow rates. Certified - SIL 2 fail safe. Applications with quick steering and auto-guidance (GPS). Interface to joystick and electric steering wheel.

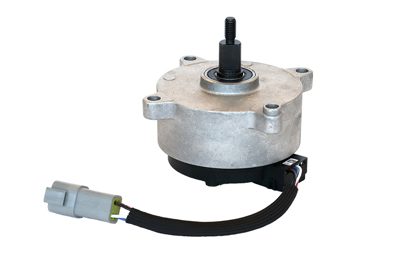

e-Wheel 100

Electric steering wheel input device with passive force-feedback used for steer-by-wire systems. Certified - SIL 2 fail safe. Improving operator comfort and ergonomics. Variable steering ratio and smooth steering feel.

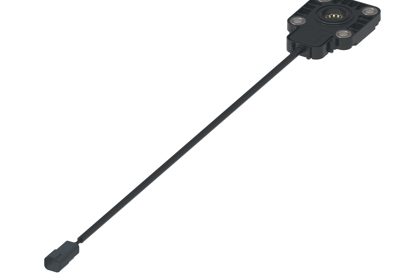

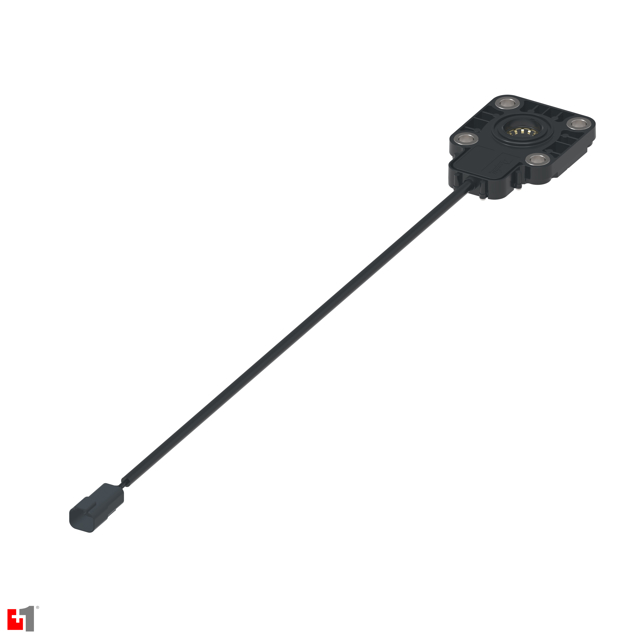

SASA sensors

Steering wheel sensor is used to detect the absolute position and speed of a mechanical steering wheel. Used in applications with variable steering ratio and closed loop set-ups where steering wheel position and vehicle steering angle have to match.

Case stories

Farmer's farewell to fatigue

FENDT launched the first combine harvester equipped with IDEALDrive – a machine you steer with a joystick, not a traditional steering wheel.

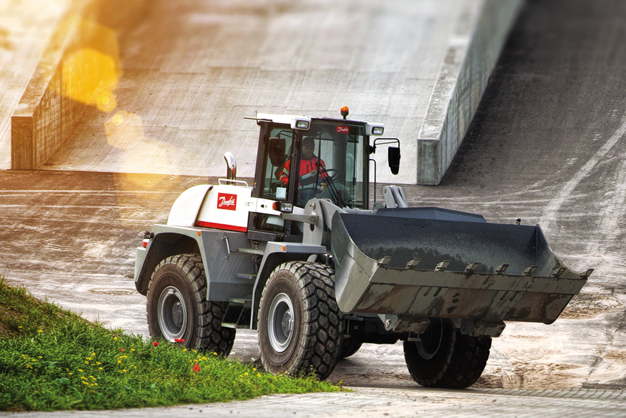

Improving operator comfort and productivity

With more commercially available steering input options, including mini-wheels and joysticks, it was trendy to switch to a new method. We had multiple discussions with our customers about steering solutions that were very much driven by the current trend. Ergonomic benefits of joystick steering, for example, were implied, but we couldn’t prove anything.
